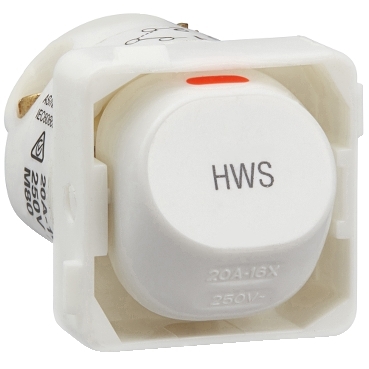

Mechanisms Universal Rocker Switch Mechanism 20A, Mechanisms, Marked, HWS

Home ProductsSwitches and SocketsClipsal - MechanismsUniversal Rocker Switch Mechanism

Mechanisms Universal Rocker Switch Mechanism 20A, Mechanisms, Marked, HWS | White Electric

Item Number: 30USMHW-WE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 30|Standard Series

Product brand

Clipsal

Sustainable offer status

Green Premium product

Physical

Device presentation

basic element

Device mounting

flush

Number of rocker

1

Local signalling

without

[ue] rated operational voltage

250 V AC

Rated current

20 A|16 AX, fluorescent lamp

Marking

hot

Fixing mode

by screws

Actuator

rocker

Switch function

2-way|1-way

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Marking location

marking on surface

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.1 cm

Package 1 width

2.4 cm

Package 1 length

2.4 cm

Package 1 weight

14 g

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
Show all specifications
