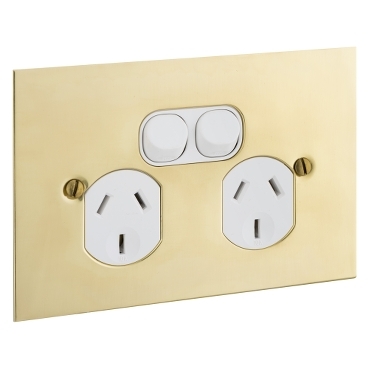

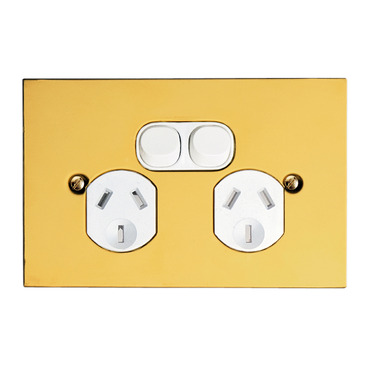

Metal Plate, Switched Socket Outlet, Twin, 250V, 10A, BBSL Style, Flat Plate

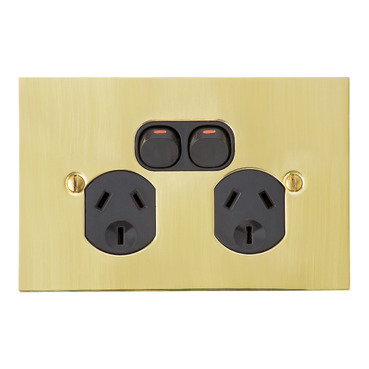

Metal Plate, Switched Socket Outlet, Twin, 250V, 10A, BBSL Style, Flat Plate Black

Item Number: BBSL25A-BK

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Metal Plate

Product or component type

switched socket

Product brand

Clipsal

Sustainable offer status

Green Premium product

Physical

Control type

ON/OFF button

Number of gangs

2 gangs

Pin number

3

Number of power socket outlets

2

Actuator

switch|rocker

Fixing mode

by screws

Local signalling

without light indicator

Mounting position

horizontal

[ue] rated operational voltage

250 V AC

[in] rated current

10 A

Depth

35 mm

Length

130 mm

Width

86 mm

Fixing center

84 mm

Standards

AS/NZS 3100|AS/NZS 3112|AS/NZS 3133:approval number S/1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

brass

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8 cm

Package 1 width

4 cm

Package 1 length

13.2 cm

Package 1 weight

144 g

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
Show all specifications
