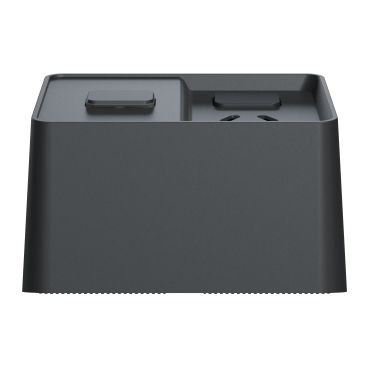

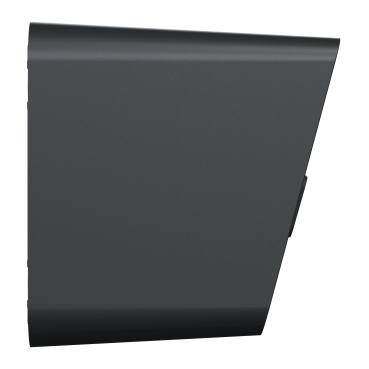

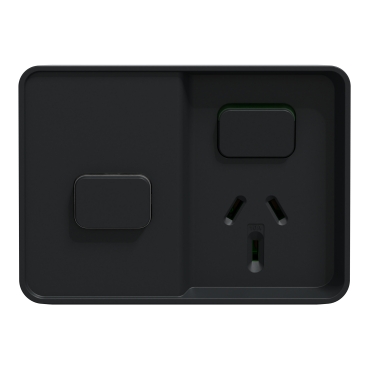

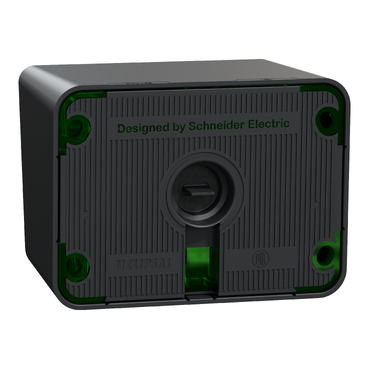

Iconic Outdoor Socket Smart Switch Single with Timer 10A 250V

Iconic Outdoor Socket Smart Switch Single with Timer 10A 250V | Black

Item Number: PDLO394CS-BK

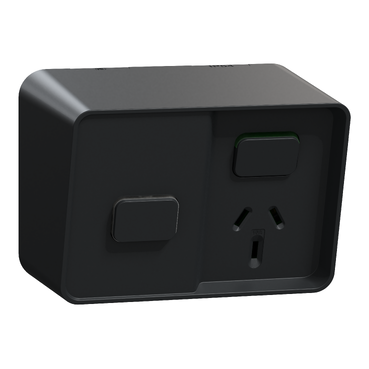

Perfect for use with equipment you only want to run at specific times, the PDL Iconic Outdoor Single Switched Socket with Timer is rated 10A, 250V. Using Bluetooth Low Energy (BLE), configure your settings using the Wiser Room app from your phone or tablet. It can also be upgraded for remote access. The outlet has a matt Black finish.

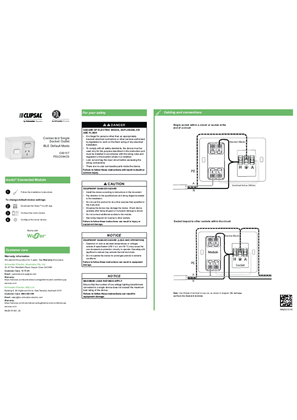

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Iconic

Range

PDL Iconic

Product or component type

switched socket

Surface finish

matt

Physical

Type of packing

box

Device presentation

complete product

Device mounting

surface

Installation direction

horizontal

Number of rocker

1

Clamping connection capacity

  • 3 x 2.5 mm²
  • 2 x 4 mm²

Wire stripping length

16 mm

Height

85 mm

Depth

82 mm

Net weight

0.19 kg

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2106012

Circularity profile

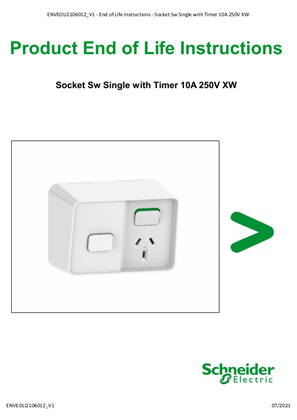

ENVEOLI2106012

Others

Package 1 bare product quantity

1

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Main colour tint

black

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

10.1 cm

Package 1 width

11.9 cm

Package 1 length

8.9 cm

Package 1 weight

332.0 g

Unit type of package 2

BB2

Number of units in package 2

25

Package 2 height

33.5 cm

Package 2 width

26.1 cm

Package 2 length

45.9 cm

Package 2 weight

9.3 kg

Unit type of package 3

P06

Number of units in package 3

300

Package 3 height

105.0 cm

Package 3 width

60.0 cm

Package 3 length

80.0 cm

Package 3 weight

120.1 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

Yes

Halogen content performance

Halogen free plastic parts product

Halogen content performance

Halogen free plastic parts product

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

8.972953047937784

Global warming ; total life cycle​

9 kg CO2 eq.

Minimum percentage of recycled plastic content

0
