Iconic Double Switched Socket Vertical + Double USB Type A+C

Iconic Double Switched Socket Vertical + Double USB Type A+C | Vivid White

Item Number: PDL392USBAC-VW

Datasheet

Product Dimensions

Width icon

Width78 mm

Height icon

Height120 mm

Depth icon

Depth44 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PDL Iconic

Product or component type

switched socket

Colour tint

vivid white (VW)

Surface finish

matt

Sustainable offer status

Green Premium product

Physical

Device presentation

complete product

Outlet poles configuration

2P + E with shutter

Outlet standard

Australian

Device mounting

flush

Number of power socket outlets

2

Number of rocker

2

Range compatibility

PDL Iconic

Outlet standard description

with earthing contact

Ground lug position

straight 180° position

Fixing mode

by screw

Installation direction

vertical

Type of packing

polybag

Quantity per set

set of 10

Sale per indivisible quantity

1

Connections - terminals

3 screw terminals

Screwdriver shape

square drive no 1 (SQ1)

Clamping connection capacity

1 x 2.5...4 x 2.5 mm² for stranded cable(s)

Wire stripping length

16 mm

Height

120 mm

Width

78 mm

Depth

44 mm

Ambient air temperature for storage

0...60 °C

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Standards

AS/NZS 3112

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Mercury free

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

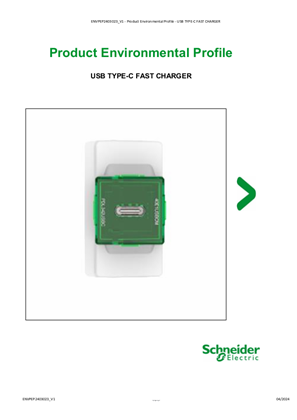

Environmental disclosure

ENVPEP2403023EN

Circularity profile

N/A

Material

Device composition

2 USB charger

Material

PC (polycarbonate): skin

Others

Package 1 bare product quantity

1

Outlet standard deviation

Australian/New Zealand

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

15.2 cm

Package 1 width

7.8 cm

Package 1 length

13.5 cm

Package 1 weight

135.0 g
