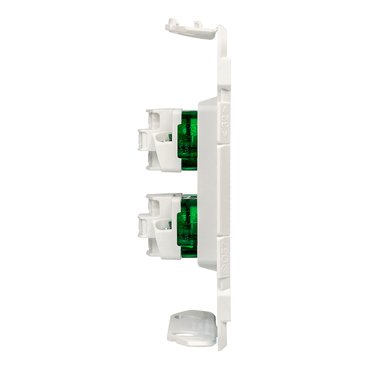

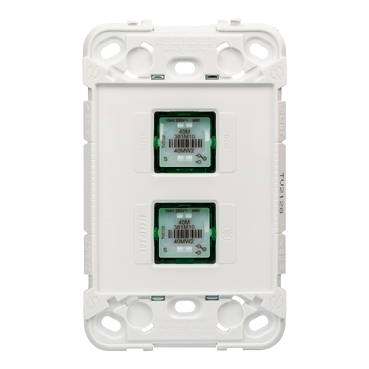

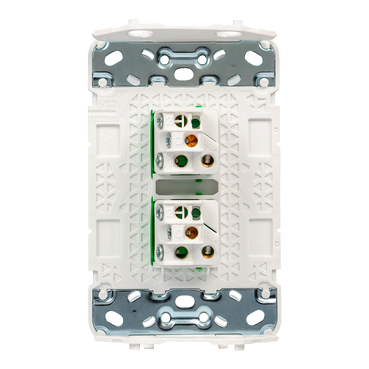

Iconic Grid + Switch Modules 10AX 2-Gang
Item Number: PDL382GM10
Iconic grids feature innovative protective flaps, which help prevent screw access after installation, allowing skins to be changed safely at any time. Its matching mounting box can be recessed into the surface of the wall with flush type. It has 2 gangs. It is compatible with the Iconic range. Its rated current is 10AX.
Specifications
Design
| Product brand | PDL |
|---|---|
| Range | Iconic |
| Product or component type | switch |
| Device application | switching loads |
| Aesthetic name | Iconic |
| Colour tint | white |
| Surface treatment | untreated |
| Surface finish | matt |
Physical
| Number of rocker | 2 |
|---|---|
| Installation direction | vertical |
| Load type |
|
| Device presentation | mechanism with fixing frame |
| Device mounting | flush |
| Actuator | rocker |
| [ue] rated operational voltage | 230/240 V |
| Rated current | 10 AX |
| Local signalling | without light indicator |
| Connections - terminals | screw terminals |
| Fixing mode | by screws |
| Width | 78 mm |
| Height | 120 mm |
| Depth | 39 mm |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1607003_V2 |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC (polycarbonate) |
|---|
