Iconic PIR Movement Detector 240V, 300 Series | Translucent

Item Number: PDL352MPIR-TN

Translucent 1 PCE 1

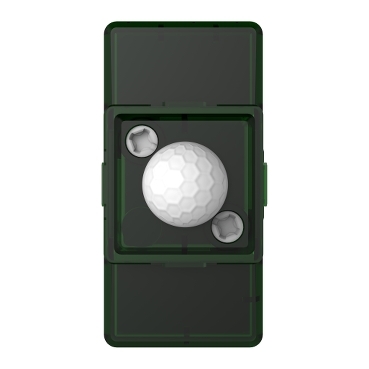

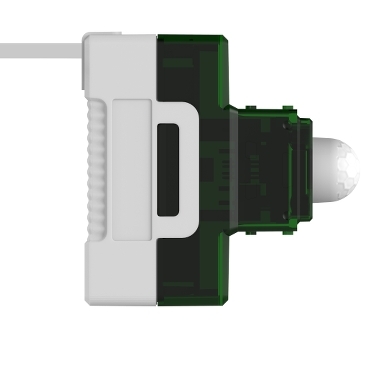

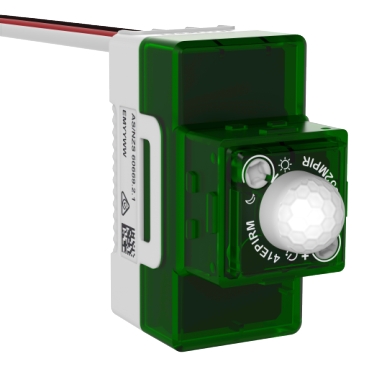

The Iconic sensor mechanism is a wall plate mounted PIR motion sensor providing 100° detection of movement up to 5m with 150W LED load control. The simple front facing trimpots and modular form factor provides simple and flexible installation and setup. With the convenience of hands free lighting control and benefits of saving energy usage, the Iconic PIR sensor is great for multiple areas around the home such as entrances, walk-in-pantries, walk-in-robes, hallway, stairs and more.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175247217	TN

Specifications

Design

Range	PDL Iconic
Product brand	PDL
Product or component type	movement detector
Device application	lighting power circuit application

Physical

Function of module	motion detection
Sensor type	PIR
Provided equipment	carrier (plastic) finishing accessory
[ue] rated operational voltage	220/240 V AC 50 Hz 25 °C
Power consumption in w	1 W at 240 V AC 50 Hz
Maximum load current	3 A for per output
Rated power in w	100 W LED lighting 750 W incandescent 100 W fluorescent 400 W LV halogen 100 W motor
Protection type	input surge protection for sensor
Electrical insulation class	double insulation
Type of setting	time adjustment: 20...900 s
Light intensity adjustment	10...2000 lux
Movement detection area	5 m
Detection angle	100° horizontal 82° vertical
Device mounting	wall mounted
Mounting height	1.2 m
Type of installation	indoor installation
Ip degree of protection	IP20 (modular enclosure) conforming to IEC 60529
Ambient air temperature for operation	-10...50 °C
Ambient air temperature for storage	-20...60 °C
Standards	AS/NZS 60669.2.1
Relative humidity	5...90 % non-condensing
Mercury free	Yes
Rohs exemption information	Yes

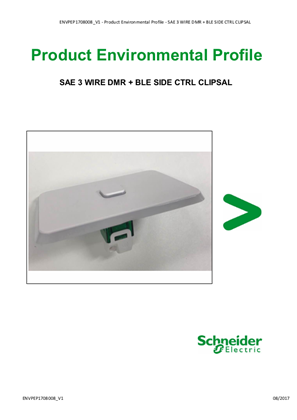

Environmental disclosure	ENVPEP1708008_V1
Eu rohs directive	Compliant By Exemption

Material

Material	plastic

Others

Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Legacy weee scope	In
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Main colour tint	translucent
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	9.9 cm
Package 1 width	6.6 cm
Package 1 length	8.4 cm
Package 1 weight	100.0 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.0019288532675709
Carbon footprint of the manufacturing phase [a1 to a3]	0 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.00001294944512946979
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	9.369297163995e-8
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	1.121784969374936
Carbon footprint of the use phase [b2, b3, b4, b6]	1 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.00002054870530209618
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.0033496791120854173
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes

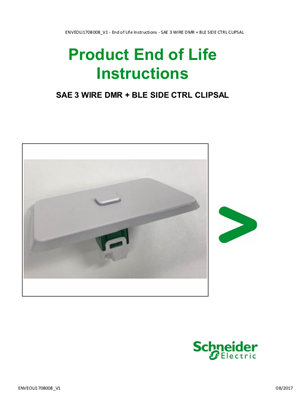

End of life manual availability	ENVEOLI1708008EN
Take-back	No
Warranty (in months)	18
