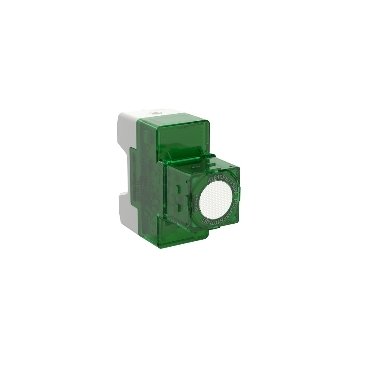

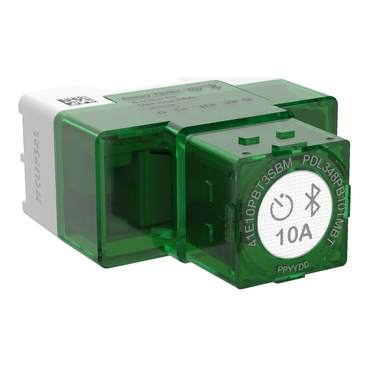

Iconic Pushbutton Timer Mechanism 3-Wire with ControlLink, 10A, 240V

Home ProductsSwitches and SocketsPDL IconicPushbutton Timer Mechanism

Iconic Pushbutton Timer Mechanism 3-Wire with ControlLink, 10A, 240V | Vivid White

Item Number: PDL348PB10TMBT-VW

The PDL Iconic Electronic Time Delay Switch Mechanism provides a convenient pushbutton menu to control time delays. The time delay switch is ideal for setting times for seasonal lights, lawn watering or environmental controls.

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width48 mm

Height icon

Height24 mm

Embedding depth icon

Embedding depth52 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PDL Iconic

Product or component type

timer

Colour tint

vivid white

Surface finish

matt

Physical

Device presentation

mechanism

Range compatibility

PDL Iconic

Device mounting

flush

Actuator

push-button

Fixing mode

clip-in

Type of packing

box

Sale per indivisible quantity

1

Remote control type

  • push-button
  • Wiser room application

[ue] rated operational voltage

240 V AC 50 Hz

Load type

  • LED lighting 10 A
  • incandescent lamp 10 A
  • low voltage halogen lamp with iron core transformer 10 A
  • low voltage halogen lamp with electronic transformer 10 A
  • fluorescent lamp 10 A
  • compact fluorescent lamp 10 A
  • resistive 15 A

Derating factor

  • 1 devices10 A without derating
  • 2 devices7.5 A with derating factor
  • 3 devices6.5 A with derating factor

Operating distance

30 m

Control signal type

ControlLink

Connections - terminals

screw terminals

Number of terminals

4

Wiring configuration

3 wires with neutral

Screwdriver shape

  • square drive no 1 (SQ1)
  • Philips

Local signalling

LED indicator (warm white)

Height

24 mm

Width

48 mm

Depth

55 mm

Embedding depth

52 mm

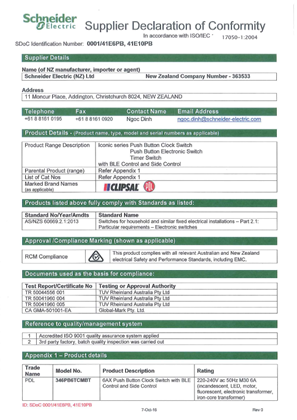

Standards

AS/NZS 60669.2.1

Ambient air temperature for storage

0...60 °C

Ambient air temperature for operation

0...45 °C

Relative humidity

0...90 %

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1708008EN

Circularity profile

ENVEOLI1708008EN

Material

Material

  • PC (UL94 V-2): top
  • PC MAS056 (UL94 V-2): bottom

Others

Package 1 bare product quantity

1

Time delay

1...86400 s (24 h) adjustable

Power range

> 0 W

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.9 cm

Package 1 width

6.7 cm

Package 1 length

8.7 cm

Package 1 weight

85 g
