Iconic Skin Socket Switch Horizontal Twin, 1ExBlank, 10A, 250V

Home ProductsSwitches and SocketsPDL IconicSkin Socket Switch

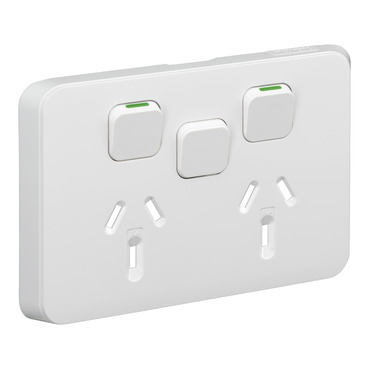

Iconic Skin Socket Switch Horizontal Twin, 1ExBlank, 10A, 250V | Extra White

Item Number: 3025XC-XW

Build this product

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width78 mm

Height icon

Height120 mm

Depth icon

Depth12 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Iconic

Range

Iconic

Product or component type

skin

Colour tint

white (XW)

Product destination

switched socket

Surface finish

matt

Surface treatment

untreated

Physical

Type of packing

polybag

Range compatibility

Iconic switched socket

Device mounting

flush

Number of rocker

3

Number of power socket outlets

2

Installation direction

horizontal

Fixing mode

clip-on

Height

120 mm

Width

78 mm

Depth

12 mm

Net weight

0.02 kg

Ambient air temperature for storage

0...60 °C

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1607004EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Material

PC (polycarbonate): skin

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

20

Average percentage of recycled plastic content

0 %

Weee applicability

Component

Weee label

N/A

Outside of Europe

Weee exclusion rationale

Component not in scope – non independent function

Main colour tint

white

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

0.9 cm

Package 1 width

7.8 cm

Package 1 length

11.9 cm

Package 1 weight

21.32 g

Unit type of package 2

BB1

Number of units in package 2

20

Package 2 height

14.65 cm

Package 2 width

10.2 cm

Package 2 length

21.8 cm

Package 2 weight

591 g

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

10 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.16988272148430772

Carbon footprint of the manufacturing phase [a1 to a3]

0.2 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.006112748624107813

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.004335158326755821

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

9.4106

Carbon footprint of the use phase [b2, b3, b4, b6]

9 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.05002252936507435

Carbon footprint of the end-of-life phase [c1 to c4]

0.1 kg CO2 eq.

Pvc free

No

Halogen-free status

Halogen free product

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

9.640953157800247

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Halogen-free status

Halogen free product

Pvc free

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
