Home ProductsSwitches and SocketsPDL IconicSwitched Socket RCD

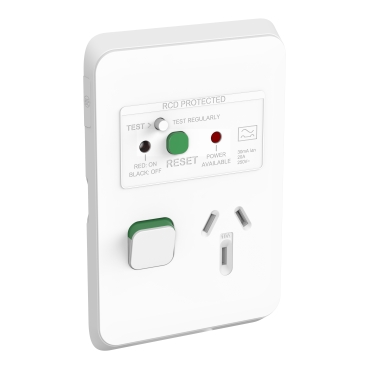

Iconic Switched Socket RCD 30mA Vertical 10A | Vivid White

Item Number: PDL391RCD30-VW

Vivid White 1 PCE 1

Where To Buy

Datasheet

Download

Product Dimensions

Width78 mm

Height120 mm

Depth44 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175242243	VW
5	BB1	9416175245954	VW
25	CAR	19416175242240	VW

Specifications

Design

Range	PDL Iconic
Product or component type	switched socket
Surface finish	matt
Surface treatment	untreated

Physical

Device presentation	complete product
Socket number	1
Connections - terminals	screw terminals
Installation direction	vertical
Device mounting	flush
Number of rocker	1
Rated current	10 A
[ue] rated operational voltage	230/240 V
Fixing mode	by screws
Clamping connection capacity	1 x 2.5...4 x 2.5 mm² for stranded cable(s) 1 x 2.5...4 x 2.5 mm² for flexible cable(s) 1 x 2.5...4 x 2.5 mm² for rigid cable(s)
Wire stripping length	16 mm
Ambient air temperature for storage	0...60 °C
Ambient air temperature for operation	0...45 °C
Height	120 mm
Width	78 mm
Depth	44 mm
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1607004EN
Eu rohs directive	Compliant By Exemption
Quantity per set	set of 4

Others

	Outside of Europe
Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Legacy weee scope	In
Warranty duration(in months) bmecat	18
Weee label	N/A
Main colour tint	vivid white
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	15.2 cm
Package 1 width	7.8 cm
Package 1 length	11 cm
Package 1 weight	110 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	13 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.876505599
Carbon footprint of the manufacturing phase [a1 to a3]	0.9 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.031538572
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.02236714
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	11.76325
Carbon footprint of the use phase [b2, b3, b4, b6]	12 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.258089973
Carbon footprint of the end-of-life phase [c1 to c4]	0.3 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	12.95175128
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
