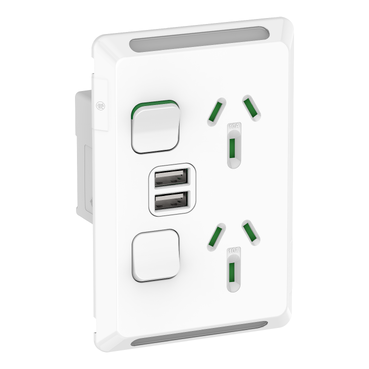

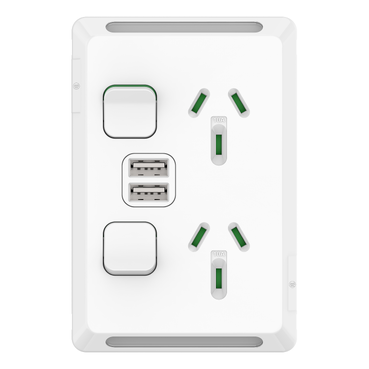

Pro Series Double Switched Socket 10A, Dual USB Type A, Vertical | Extra White
Item Number: PDLP392USB2-XW
Socket outlet assembly for vertical installations. Twin switched socket with a twin USB-A charger. Pro Series skin and socket grid are included. PDL Pro Series. Colour: Extra White Rated current: 10A Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.
Specifications
Design
| Range | Pro Series |
|---|---|
| Product or component type | switched socket with USB charger |
| Range of product | PDL |
| Product brand | PDL |
| Surface finish | glossy |
| Surface treatment | untreated |
Physical
| Number of power socket outlets | 2 |
|---|---|
| Type of packing | polybag |
| Quantity per set | set of 10 |
| Switch function | with ON/OFF function |
| Device presentation | complete product |
| Number of rocker | 2 |
| Device mounting | flush |
| Installation direction | vertical |
| Rated current | 10 A |
| [ue] rated operational voltage | 250 V |
| Clamping connection capacity |
|
| Fixing mode | by screws |
| Wire stripping length | 16 mm |
| Height | 78 mm |
| Width | 116 mm |
| Depth | 64 mm |
| Net weight | 94 g |
| Ambient air temperature for operation | 0...45 °C |
| Relative humidity | 10...95 % |
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2403023_V1 |
| Reach regulation | Free of Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
