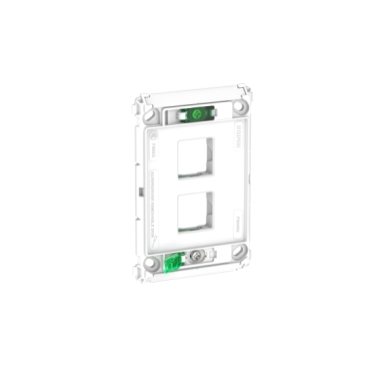

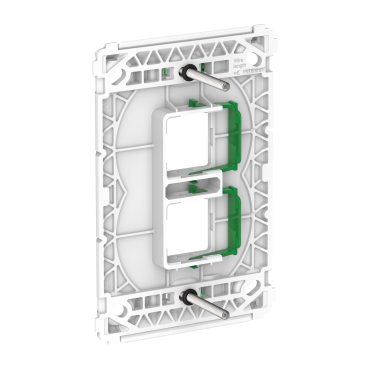

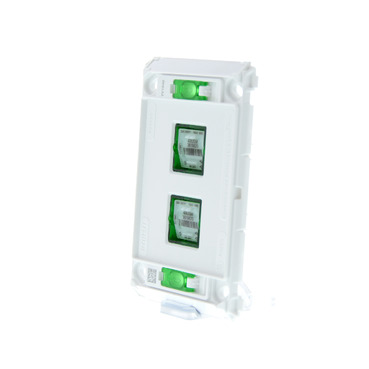

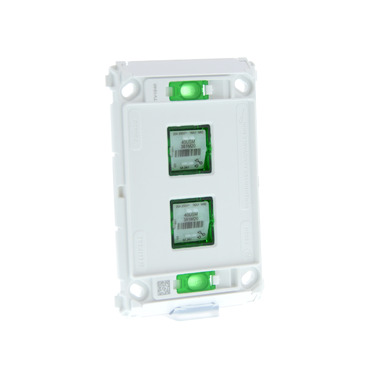

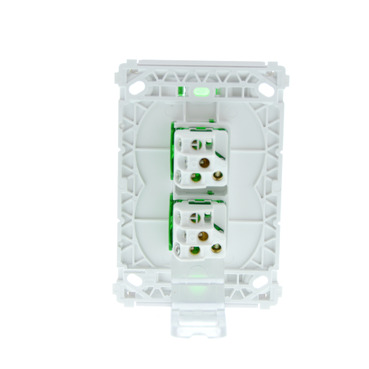

Pro Series Grid Plate Switch 2-Gang

Pro Series Grid Plate Switch 2-Gang

Item Number: PDLP382G

Switch grid. Suitable for 2-gang installations. Suitable for PDL Pro Series, Iconic, Iconic Styl and Iconic Essence.

Datasheet

Product Dimensions

Width icon

Width112 mm

Height icon

Height72 mm

Depth icon

Depth38 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Pro Series

Product or component type

fixing frame

Market segment

  • commercial
  • buildings

Physical

Number of gangs

2 gangs

Fixing mode

by screws

Range compatibility

Pro Series cover plate

Provided equipment

screws

Mounting support

wall

Depth

38 mm

Width

112 mm

Height

72 mm

Net weight

0.038 kg

Type of packing

polybag

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1607003EN

Circularity profile

N/A

Material

Material

  • PC (polycarbonate)
  • PP (polypropylene)
  • ABS (acrylonitrile butadiene-styrene)
  • POM (polyoxymethylene)

Others

Packaging without single use plastic

No

Packaging made with recycled cardboard

Yes

Package 1 bare product quantity

1

Targeted country

  • Australia
  • New Zealand

Targeted channel

  • professional
  • distributor

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.6 cm

Package 1 width

7.8 cm

Package 1 length

11.6 cm

Package 1 weight

32.56 g

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

3.476707909760001

Global warming ; total life cycle​

3 kg CO2 eq.

Minimum percentage of recycled plastic content

0
Show all specifications
