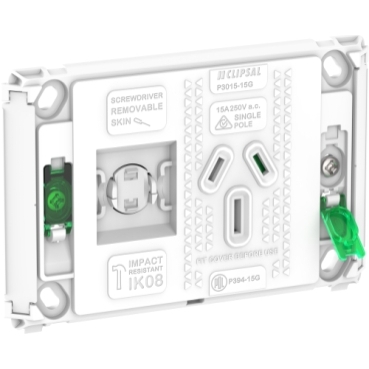

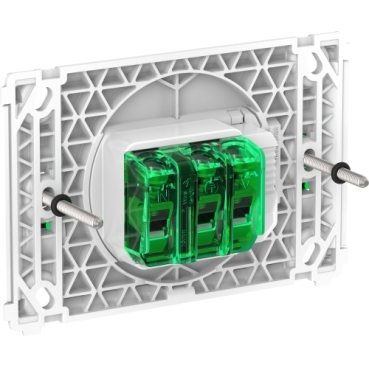

Pro Series Grid Single Switched Socket 15A Horizontal

Item Number: PDLP394-15G

Socket outlet grid for horizontal installations. Single switched socket grid. Suitable for PDL Pro Series, Iconic, Iconic Styl and Iconic Essence. Rated current: 15A. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Datasheet

Product Dimensions

Width icon

Width112 mm

Height icon

Height72 mm

Depth icon

Depth27 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Pro Series

Product or component type

switched socket

Colour tint

white

Surface treatment

untreated

Physical

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Standards

AS/NZ 3112

Product certifications

RCM

Device presentation

mechanism with fixing frame

Outlet poles configuration

2P + E with shutter

Outlet standard

Australian

Device mounting

flush

Number of power socket outlets

1

Number of rocker

1

Range compatibility

Pro Series

Outlet standard description

with earthing contact

Ground lug position

straight 180° position

Fixing mode

by screws

Installation direction

horizontal

Type of packing

polybag

Quantity per set

set of 10

Sale per indivisible quantity

1

Rated current

15 A at 250 V AC 50 Hz

Connections - terminals

3 screw terminals

Screwdriver shape

square drive no 1 (SQ1)|Philips No 2

Clamping connection capacity

1 x 2.5...4 x 2.5 mm² for rigid or stranded cable(s)|3 x 4 mm² for rigid or stranded cable(s)

Wire stripping length

16 mm

Height

72 mm

Width

112 mm

Depth

27 mm

Net weight

0.078 kg

Eu rohs directive

Under investigation

Material

Material

PC (polycarbonate): fixing frame|PP (polypropylene)|POM (polyoxymethylene): shutter

Others

Package 1 bare product quantity

1

Outlet standard deviation

Australian/New Zealand

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.6 cm

Package 1 width

7.2 cm

Package 1 length

11.2 cm

Package 1 weight

80.56 g

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
