Pro Series Module Intermediate Switch 10A 250V, 300 Series

Item Number: PDL378M10

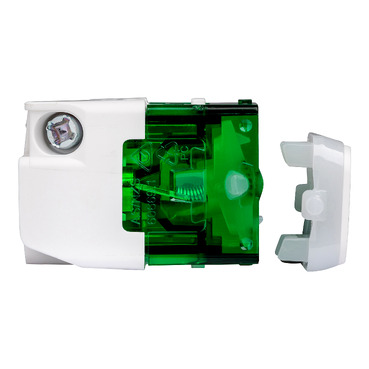

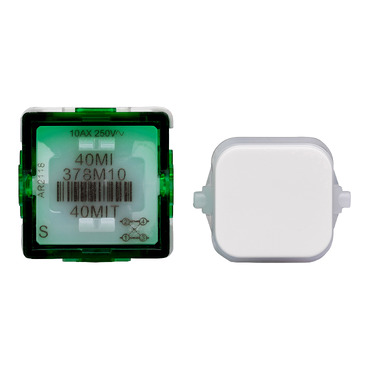

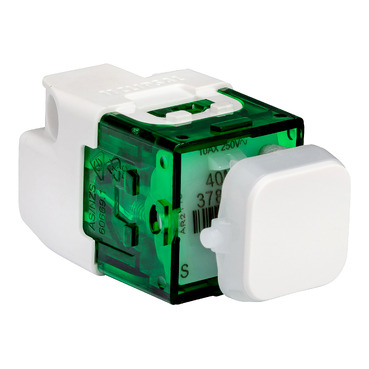

The PDL 40 Mech module is an intermediary light switch allowing you to activate or deactivate loads from 3 locations. The 10A, 250V mech is perfect for turning on light sources and can be used with a variety of PDL Pro Grid and Plate assemblies.

Datasheet

Product Dimensions

Width icon

Width23 mm

Height icon

Height23 mm

Depth icon

Depth32 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Pro Series

Product or component type

switch

Sustainable offer status

Green Premium product

Physical

Type of packing

polybag

Quantity per set

set of 20

Device presentation

mechanism

Control type

rocker

Switch function

intermediate

Rated current

10 A

[ue] rated operational voltage

250 V

Fixing mode

by clips

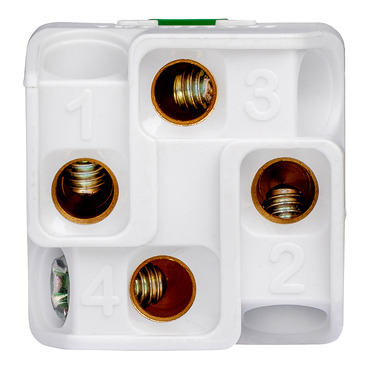

Connections - terminals

screw terminal

Clamping connection capacity

1 x 1.5...4 x 1.5 mm² for rigid or stranded cable(s)|3 x 2.5 mm² for stranded cable(s)|1 x 4 mm² for stranded cable(s)

Height

23 mm

Width

23 mm

Depth

32 mm

Net weight

0.016 kg

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Product certifications

RCM

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2001003EN

Circularity profile

ENVEOLI2001003EN

Material

Material

PC (polycarbonate)|PA66|ABS (acrylonitrile butadiene-styrene)

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.2 cm

Package 1 width

2.2 cm

Package 1 length

2.4 cm

Package 1 weight

15.98 g
