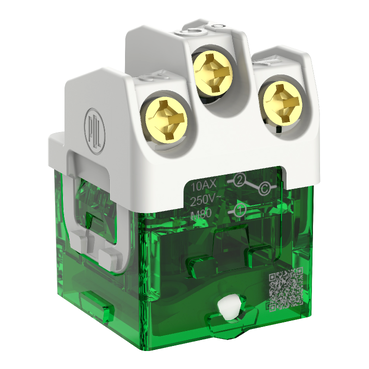

Pro Series Module Switch 1/2-Way, 10AX, 230/240V, 300 Series

Item Number: PDL381M10

1 PCE 1

The PDL Iconic Switch Mechanism is an adjustable light switch designed for reliable performance. The wall switch mechanism is suitable for lighting control for smart home and 2-way switching is ideal for larger spaces. The switch is also suitable for operating small motor loads such as exhaust fans.

Where To Buy

Datasheet

Download

Product Dimensions

Width23 mm

Height23 mm

Depth32 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175241512	-
60	BB1	9416175244124	-
300	CAR	19416175241519	-

Specifications

Design

Product brand	PDL
Range	Pro Series
Product or component type	switch
Device application	lighting
Aesthetic name	Iconic
Colour tint	white
Surface treatment	untreated
Surface finish	matt

Physical

Number of rocker	1
Switch function	1/2-way
Load type	fluorescent 10 A LEDi lamp 100 W inductive light fluorescent lamp
Quantity per set	set of 20
Device presentation	mechanism
Device mounting	flush
Actuator	rocker
[ue] rated operational voltage	230/240 V
Rated current	10 AX
Connections - terminals	screw terminals
Number of terminals	4
Clamping connection capacity	1.5 mm² for stranded cable(s) 1.5 mm² for flexible cable(s) 1.5 mm² for rigid cable(s)
Fixing mode	by clipping locks
Width	23 mm
Height	23 mm
Depth	32 mm
Screwdriver shape	Philips No 2 square drive no 1 (SQ1)
Net weight	16 g
Wire stripping length	10 mm
Electrical durability	20000 cycles conforming to AS/NZS 60669
Ambient air temperature for storage	0...60 °C
Relative humidity	10...95 %
Product certifications	RCM
Ambient air temperature for operation	0...45 °C
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2108010_V1
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate): housing PA66: housing

Others

Package 1 bare product quantity	1
Legacy weee scope	In
Warranty duration(in months) bmecat	18
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Finished product
Motor m-rating as3133	M80
Technology type	electromechanical
Network type	AC
Main colour tint	white
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.3 cm
Package 1 width	2.3 cm
Package 1 length	1.5 cm
Package 1 weight	15.48 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.0009101117098445598
Carbon footprint of the manufacturing phase [a1 to a3]	0 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.00000199726756476684
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	3.5999689119171e-7
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	3.65325
Carbon footprint of the use phase [b2, b3, b4, b6]	4 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.00000662939689119171
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	No
Halogen-free status	Halogen free product
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.0018958222053886017
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	1
Halogen-free status	Halogen free product
Pvc free	No
End of life manual availability	ENVEOLI2108010EN
Take-back	No
Warranty (in months)	18

Show all specifications
