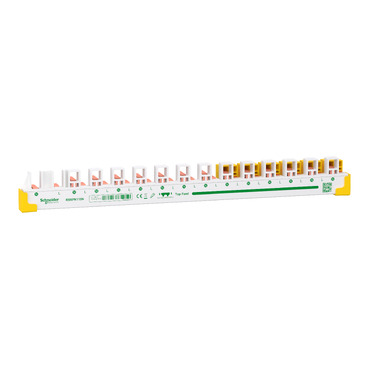

Resi9 Comb Busbar 1P+N, 15 modules, 100 A with N block and accessories

Item Number: R9XPN115N

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Resi9

Product or component type

comb busbar

Market segment

residential

Physical

Device presentation

cuttable

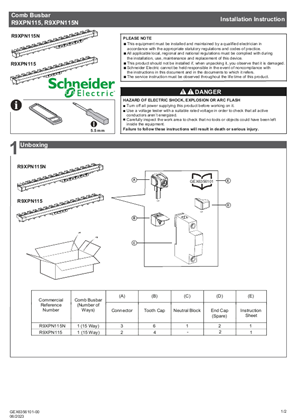

Provided equipment

  • 1 connector
  • 5 tooth covers
  • 1 neutral terminal block
  • 2 end cover

[ie] rated operational current

100 A

[ue] rated operational voltage

230 V AC

Mounting mode

horizontal

Standards

  • AS/NZS 61439-3
  • AS/NZS 3000

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2210014EN

Eu rohs directive

Compliant

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

12

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Finished product

Total number of 18 mm modules

15

Number of ways

  • outgoer: 13 ways N + L
  • incomer: 2 ways N + L

Poles configuration for 1 way

outgoer: 1P + N

Connection pitch

  • incomer: 18 mm
  • outgoer: 9 mm

Insulation

insulated

[ui] rated insulation voltage

500 V

[uimp] rated impulse withstand voltage

4 kV

Mounting location

top

Fire resistance

960 °C

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.4 cm

Package 1 width

2.2 cm

Package 1 length

27.5 cm

Package 1 weight

230 g

Unit type of package 2

CAR

Number of units in package 2

12

Package 2 height

24 cm

Package 2 width

29 cm

Package 2 length

33 cm

Package 2 weight

2.76 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

32 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

1.59

Carbon footprint of the manufacturing phase [a1 to a3]

2 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.10291

Carbon footprint of the distribution phase [a4]

0.1 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.18485

Carbon footprint of the installation phase [a5]

0.2 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

29.068

Carbon footprint of the use phase [b2, b3, b4, b6]

29 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.63481

Carbon footprint of the end-of-life phase [c1 to c4]

0.6 kg CO2 eq.

Pvc free

No

Halogen-free status

Halogen free product

Silicone-free

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

31.58057

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Halogen-free status

Halogen free product

Pvc free

No

Silicone-free

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications

Frequently Asked Questions

How to distribute MAXBAR from the main row to other rows keeping the system more professional?

Hide Show
 MAXBAR with a neutral terminal block can be used to distribute active and neutral in the row with a main switch. Use the connectors provided with MAXBAR to take active and neutral feed from the row with main switch to other rows. You can follow the same process for other rows in switchboard.
Resi9 faq4


How should the wiring be managed in case of 2 phase or 3 phase circuits using MAXBAR?

Hide Show
2 phase or 3 phase circuits cannot directly be connected through a MAXBAR, however, connections can still be made as shown in the images.

Resi9 faq5

How can MAXBAR be used without using 1 Module space for Terminal Block?

Hide Show
In case there is a need to save on 1 module space, the neutral leg on the left side of the busbar could be cut using an appropriate tool. End caps needs to be reinstalled post cutting.

Install the spare connector provided with the busbar in the neutral terminal of one of the RCBOs/AFDDs & install the neutral cable to this connector.

What is MAXBAR ?

Hide Show
MaxBar is a top feeding comb busbar compatible with Resi9 RCBOs & AFDDs and connects Phase & Neutral directly to the MAXBAR from the Main incoming Switch and NTB.

There are two options available in MAXBAR, the first is a Comb busbars dedicated for 1P+N for rows with a Main Switch (R9XPN115N) and the second  variant is dedicated for 1P+N for rows without a Main switch (R9XPN115)

Resi9 NZ faq3


How can MAXBAR help to save time during switchboard installation ?

Hide Show
MAXBAR removes the need for cutting stripping, twisting and managing cables for feeding RCBO & AFDD on typical installation.
This helps to achieve Up to 2x faster installation speed with MAXBAR compared to traditional method with RCDs & MCBs.Resi9 NZ faq3
