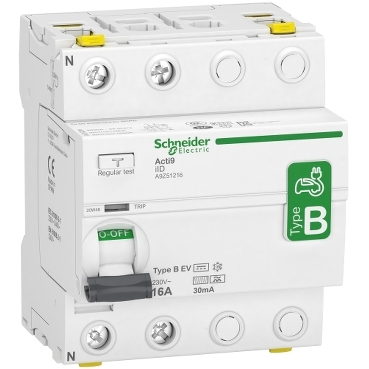

EVlink Residual Current Circuit Breaker 2P, 16A, 30mA, B EV Type

Item Number: A9Z51216

1 PCE 1

Where To Buy

Datasheet

Download

Product Dimensions

Width72 mm

Height88 mm

Depth73 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606489502775	-
27	S03	43606489502773	-

Specifications

Design

Range	Acti9
Product or component type	residual current circuit breaker (RCCB)
Device application	Electrical Vehicle charger

Physical

[in] rated current	16 A
[ue] rated operational voltage	230 V AC 50 Hz
Control type	toggle
Local signalling	trip indicator ON/OFF indication
Mounting mode	clip-on
Mounting support	35 mm DIN rail
Height	88 mm
Width	72 mm
Depth	73 mm
Net weight	350 g
Mechanical durability	20000 cycles
Electrical durability	15000 cycles
Connections - terminals	double terminal front 1-35 mm² rigid double terminal front 1-25 mm² flexible double terminal front 1-25 mm² flexible with ferrule double terminal back 1-25 mm² rigid double terminal back 1-16 mm² flexible double terminal back 1-16 mm² flexible with ferrule
Wire stripping length	14 mm for top or bottom connection
Standards	EN/IEC 61008-1 EN/IEC 61008-2-1 IEC/EN 62423
Product certifications	CCC
Ip degree of protection	IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
Ik degree of protection	IK05
Ambient air temperature for operation	-25...60 °C
Ambient air temperature for storage	-40...85 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1811009EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Certification number	DC-E-S26-086.1 - IRAM
Life cycle assessment data	Yes
Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	27
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	Acti9 iID
Device short name	iID
Poles description	2P
Neutral position	left
Network type	AC
Earth-leakage sensitivity	30 mA
Earth-leakage protection time delay	instantaneous
Earth-leakage protection class	type B-EV (Electric Vehicle)
Quality labels	VDE NF IMQ KEMA
Device location in system	outgoer group incomer
Network frequency	50 Hz
Residual current tripping technology	voltage independent
Rated breaking and making capacity	Idm 1500 A Im 1500 A
Rated conditional short-circuit current	10 kA
[ui] rated insulation voltage	250 V
[uimp] rated impulse withstand voltage	6 kV
Contact position indicator	yes
Comb busbar and distribution block compatibility	top or bottom: tooth
Connection pitch	18 mm
9 mm pitches	8
Total power losses	0.5 W
Power losses per pole	0.25 W
Locking options description	padlocking device
Tightening torque	3.5...3.5 N.m top or bottom
Pollution degree	3
Overvoltage category	IV
Electromagnetic compatibility	8/20 µs impulse withstand, 3 kA conforming to EN/IEC 61008-1
Operating altitude	0...2000 m
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8.500 cm
Package 1 width	7.500 cm
Package 1 length	10.000 cm
Package 1 weight	363.000 g
Unit type of package 2	S03
Number of units in package 2	27
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	10.301 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	22 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	4.805941358058581
Carbon footprint of the manufacturing phase [a1 to a3]	5 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.10274754997422429
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.03305488204052592
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	16.551898542346358
Carbon footprint of the use phase [b2, b3, b4, b6]	17 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.7939785063620873
Carbon footprint of the end-of-life phase [c1 to c4]	0.8 kg CO2 eq.
Halogen-free status	Product contains halogen above thresholds
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	22.287620838781777
Bvb	Accepted
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	b078722f-7853-4e1e-a05b-29638f57b0ab
Halogen-free status	Product contains halogen above thresholds
End of life manual availability	ENVEOLI1811009EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
