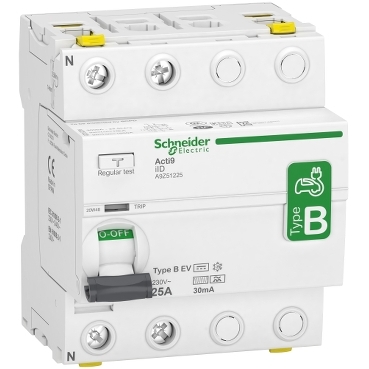

Acti9 iID - Residual Current Circuit Breaker - 2P - 25A - 30mA - B EV type

Acti9 iID 2P 25A 30mA B type EV 230V Residual Current Circuit Breaker

Home ProductsElectric Vehicle ChargingEVlinkResidual Current Circuit Breaker

EVlink, Residual Current Circuit Breaker, 2P, 25A, 30mA, B EV Type

Item Number: A9Z51225

1 PCE 1

Where To Buy

Datasheet

Download

Product Dimensions

Width72 mm

Height88 mm

Depth79 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3606489502782	-
27		43606489502780	-

Specifications

Design

Range

Acti9

Product or component type

residual current circuit breaker (RCCB)

Device application

Electrical Vehicle charger

Sustainable offer status

Green Premium product

Physical

[in] rated current

25 A

[ue] rated operational voltage

230 V AC 50 Hz

Control type

toggle

Local signalling

trip indicator|ON/OFF indication

Mounting mode

clip-on

Mounting support

DIN rail

Height

88 mm

Width

72 mm

Depth

79 mm

Net weight

350 g

Mechanical durability

20000 cycles

Electrical durability

15000 cycles

Connections - terminals

double terminal front 1-35 mm² rigid|double terminal front 1-25 mm² flexible|double terminal front 1-25 mm² flexible with ferrule|double terminal back 1-25 mm² rigid|double terminal back 1-16 mm² flexible|double terminal back 1-16 mm² flexible with ferrule

Wire stripping length

14 mm for top or bottom connection

Standards

IEC 61008-2-1|IEC/EN 62423|EN 61008-2-1

Product certifications

CCC

Ip degree of protection

IP20 conforming to IEC 60529|IP40 (modular enclosure) conforming to IEC 60529

Ik degree of protection

IK05

Ambient air temperature for operation

-25...60 °C

Ambient air temperature for storage

-40...85 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1811009EN

Circularity profile

ENVEOLI1811009EN

Others

Certification number

DC-E-S26-086.1 - IRAM

Package 1 bare product quantity

Product name

Acti9 iID

Device short name

iID

Poles description

Neutral position

left

Network type

Earth-leakage sensitivity

30 mA

Earth-leakage protection time delay

instantaneous

Earth-leakage protection class

type B-EV (Electric Vehicle)

Quality labels

VDE|NF|IMQ|KEMA

Device location in system

outgoer|group incomer

Network frequency

50 Hz

Residual current tripping technology

voltage independent

Rated breaking and making capacity

Idm 1500 A|Im 1500 A

Rated conditional short-circuit current

10 kA

[ui] rated insulation voltage

250 V

[uimp] rated impulse withstand voltage

6 kV

Contact position indicator

yes

Comb busbar and distribution block compatibility

top or bottom: tooth

Connection pitch

18 mm

9 mm pitches

Total power losses

1.4 W

Power losses per pole

0.7 W

Locking options description

padlocking device

Tightening torque

3.5...3.5 N.m top or bottom

Pollution degree

Overvoltage category

Electromagnetic compatibility

8/20 µs impulse withstand, 3 kA conforming to EN/IEC 61008-1

Operating altitude

0...2000 m

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

7.5 cm

Package 1 width

8.5 cm

Package 1 length

10.0 cm

Package 1 weight

363.0 g

Unit type of package 2

S03

Number of units in package 2

Package 2 height

30.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

10.206 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Show all specifications

Documents & downloads

hide show

Colour ()

EVlink, Residual Current Circuit Breaker, 2P, 25A, 30mA, B EV Type

Item Number: A9Z51225

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

How to video

CAD Files and Packs

Installation Instruction

End of Life Manual

Environmental Disclosure

Operating Manuals

Application Notes

Certificates (MSDS)

Declaration of Conformity

Understand what are the steps to check and test the Acti9 RCCB B-SI Type.

Acti9 iID 2P 40A 30mA B type EV 230V Residual Current Circuit Breaker - 3D CAD

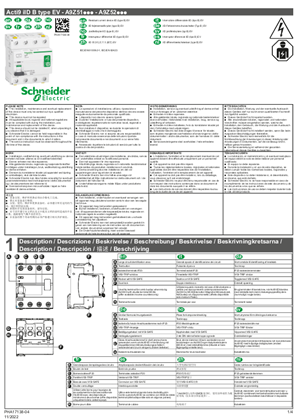

Instruction sheet - Residual current device iID (type B) EV

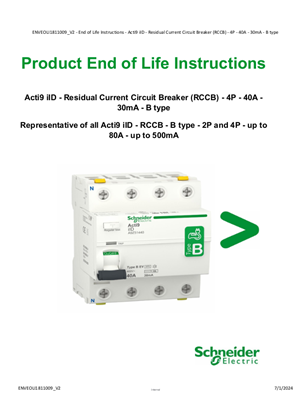

Acti9 iID - Residual Current Circuit Breaker (RCCB) - 4P - 40A - 30mA - B type - Product End of Life Instructions

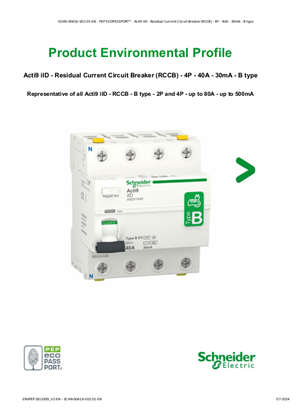

Acti9 iID - Residual Current Circuit Breaker (RCCB) - 4P - 40A - 30mA - B type - Product Environmental Profile

Routine operating checks of Residual Current Devices - User Guide

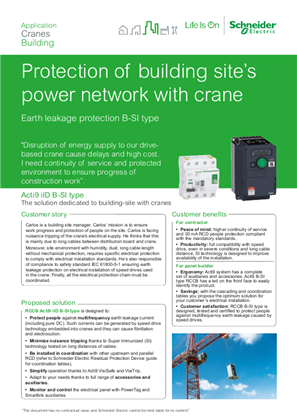

Acti9 RCCB B-SI type for crane in building site

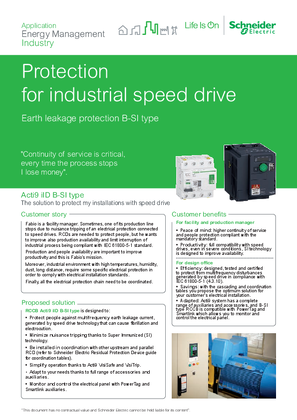

Acti9 RCCB B-SI type for industrial speed drives

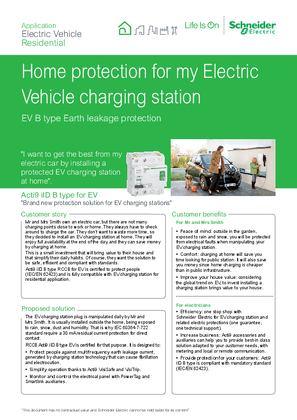

Acti9 RCCB EV B type for Residential Electrical Vehicle charging station

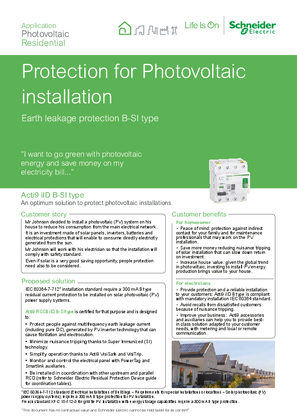

Acti9 RCCB B-SI type for photovoltaic installation

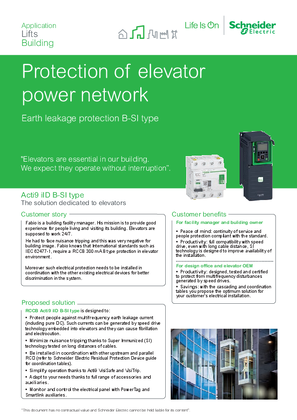

Acti9 RCCB B-SI type for elevator power network

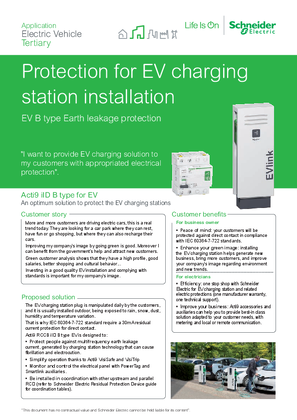

Acti9 RCCB EV B type for Commercial Electrical Vehicle charging station

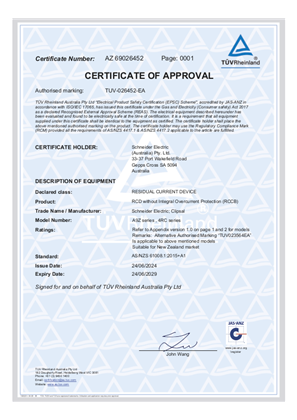

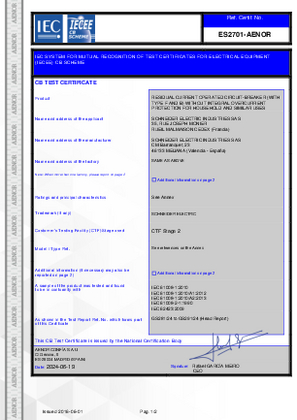

Schneider Electric, A9Z and 4RC Residual Current Devices, Certificate, RCM, TUV Pty Ltd

IRAM certificate

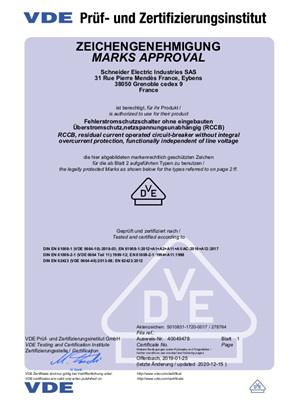

VDE certificate

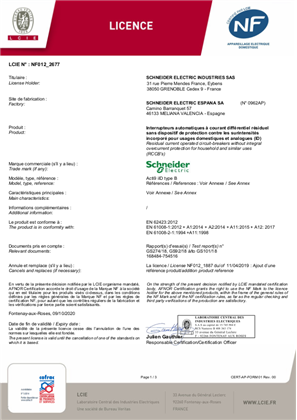

NF certificate LCIE

LCIE certificate

KEMA certificate

IMQ certificate

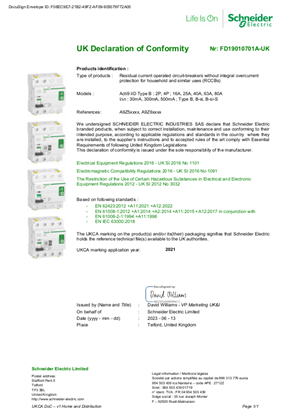

UK_DoC_FD19010701A_RCCB_Acti9 ilD Type B

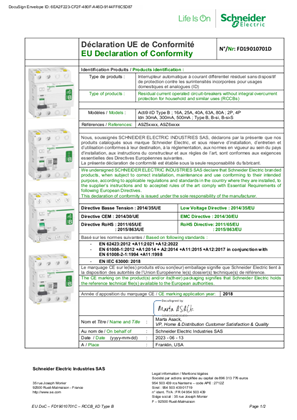

EU DoC_FD19010701D_RCCB iID type B
