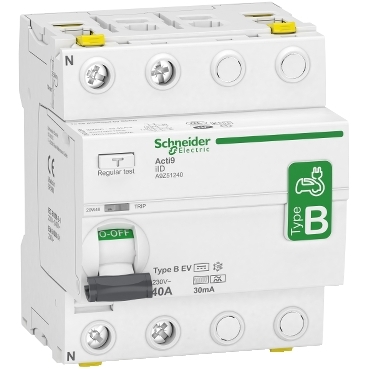

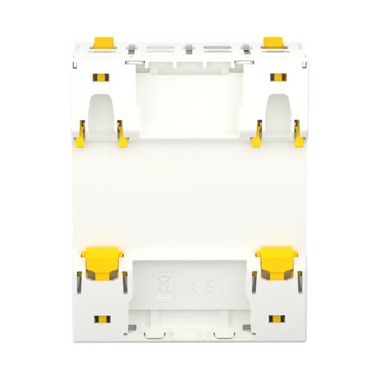

EVlink, Residual Current Circuit Breaker, 2P, 40A, 30mA, B EV Type

Home ProductsElectric Vehicle ChargingEVlinkResidual Current Circuit Breaker

EVlink, Residual Current Circuit Breaker, 2P, 40A, 30mA, B EV Type

Item Number: A9Z51240

Datasheet

Product Dimensions

Width icon

Width72 mm

Height icon

Height88 mm

Depth icon

Depth79 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

residual current circuit breaker (RCCB)

Device application

Electrical Vehicle charger

Sustainable offer status

Green Premium product

Physical

[in] rated current

40 A

[ue] rated operational voltage

230 V AC 50 Hz

Control type

toggle

Local signalling

trip indicator|ON/OFF indication

Mounting mode

clip-on

Mounting support

DIN rail

Height

88 mm

Width

72 mm

Depth

79 mm

Net weight

350 g

Mechanical durability

20000 cycles

Electrical durability

15000 cycles

Connections - terminals

double terminal front 1-35 mm² rigid|double terminal front 1-25 mm² flexible|double terminal front 1-25 mm² flexible with ferrule|double terminal back 1-25 mm² rigid|double terminal back 1-16 mm² flexible|double terminal back 1-16 mm² flexible with ferrule

Wire stripping length

14 mm for top or bottom connection

Standards

IEC 61008-2-1|IEC/EN 62423|EN 61008-2-1

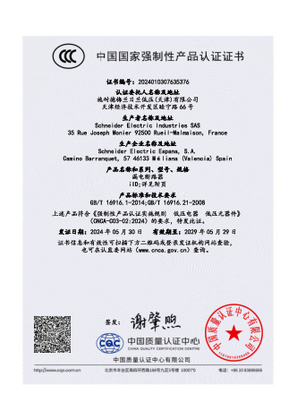

Product certifications

CCC|KC

Ip degree of protection

IP20 conforming to IEC 60529|IP40 (modular enclosure) conforming to IEC 60529

Ik degree of protection

IK05

Ambient air temperature for operation

-25...60 °C

Ambient air temperature for storage

-40...85 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1811009EN

Circularity profile

ENVEOLI1811009EN

Others

Certification number

DC-E-S26-086.1 - IRAM

Package 1 bare product quantity

1

Product name

Acti9 iID

Device short name

iID

Poles description

2P

Neutral position

left

Network type

AC

Earth-leakage sensitivity

30 mA

Earth-leakage protection time delay

instantaneous

Earth-leakage protection class

type B-EV (Electric Vehicle)

Quality labels

VDE|NF|IMQ|KEMA

Device location in system

outgoer|group incomer

Network frequency

50 Hz

Residual current tripping technology

voltage independent

Rated breaking and making capacity

Idm 1500 A|Im 1500 A

Rated conditional short-circuit current

10 kA

[ui] rated insulation voltage

250 V

[uimp] rated impulse withstand voltage

6 kV

Contact position indicator

yes

Comb busbar and distribution block compatibility

top or bottom: tooth

Connection pitch

18 mm

9 mm pitches

8

Total power losses

3.6 W

Power losses per pole

1.8 W

Locking options description

padlocking device

Tightening torque

3.5...3.5 N.m top or bottom

Pollution degree

3

Overvoltage category

IV

Electromagnetic compatibility

8/20 µs impulse withstand, 3 kA conforming to EN/IEC 61008-1

Operating altitude

0...2000 m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.5 cm

Package 1 width

8.5 cm

Package 1 length

10.0 cm

Package 1 weight

361.0 g

Unit type of package 2

S03

Number of units in package 2

27

Package 2 height

30.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

10.227 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • How to video

  • CAD Files and Packs

  • Installation Instruction

  • End of Life Manual

  • Environmental Disclosure

  • Operating Manuals

  • Application Notes

  • Certificates (MSDS)

  • Declaration of Conformity

Frequently Asked Questions

hide show

What items come with the KITWALLBOX7?

A9Z51240 = Type B single phase RCCD
A9F54240 = 2 pole, 40A, Curve MCB
A9A26969 = Under voltage release

What is the code for a 32A Type B RCBO for EV chargers?

We do not have any Type B RCBOs available, but this protection can be achieved using a RCCB and MCB.

Single phase = A9Z51240 + A9F54232

3 phase = A9Z51440 + A9F54432


What are the part numbers for 30mA and 300mA Type B RCCBs available in Australia ?

30mA Type B EV RCCB
A9Z51225 – 2 Pole, 25A
A9Z51240 – 2 Pole, 40A
A9Z51440 – 4 Pole, 40A
A9Z51463 – 4 Pole, 63A
30mA Type B RCD.pngA9Z51463.png

30mA Type B Si RCCB
A9Z61440 – 4 Pole, 40A
A9Z61463 – 4 Pole, 63A

30mA Type B Si RCD.pngA9Z61463.png

300mA Type B Si RCCB
A9Z65463 – Acti9 iID 4 Pole, 63A
