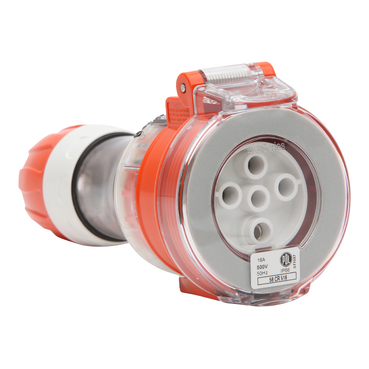

56 Series Cord Connector Extension Socket 16A 500V 5-Round Pin IP66, Orange

Home ProductsIndustrial56 SeriesCord Connector Extension Socket

56 Series Cord Connector Extension Socket 16A 500V 5-Round Pin IP66, Orange

Item Number: PDL56CR516

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

56 Series™

Product or component type

socket

Colour tint

orange

Surface finish

gloss

Physical

Rated current

16 A

[ue] rated operational voltage

500 V

Pin number

5

Ip degree of protection

IP66

Ambient air temperature for operation

-40...55 °C

Quantity per set

set of 4

Type of packing

carton

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

plastic

Device composition

round pin

Others

Package 1 bare product quantity

1

Network frequency

50 Hz

Network number of phases

3 phases

Cable cross section

7...16 mm²

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.5 cm

Package 1 width

9 cm

Package 1 length

16 cm

Package 1 weight

269 g
Show all specifications
