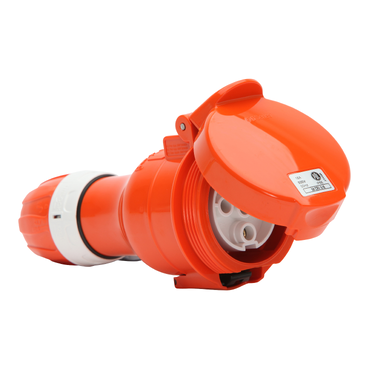

56 Series Cord Connector Extension Socket 16A 500V 5-Round Pin IP66, Orange
Item Number: PDL56CRV516
Datasheet
Close
Specifications
Design
Range of product
56 Series™
Product or component type
socket
Colour tint
orange
Surface finish
gloss
Sustainable offer status
Green Premium product
Physical
Rated current
16 A
[ue] rated operational voltage
500 V
Pin number
5
Ip degree of protection
IP66
Ambient air temperature for operation
-40...55 °C
Quantity per set
set of 4
Type of packing
carton
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP121020EN
Circularity profile
N/A
Material
Material
PBT (polybutylene terephthalate)
Device composition
round pin
Others
Commercial status history
SESA301466 | Thu Aug 17 21:46:00 EDT 2023 | From Import Local | From 18 to 19
Package 1 bare product quantity
1
Network frequency
50 Hz
Network number of phases
3 phases
Cable cross section
7...16 mm²
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
0.348 kg
