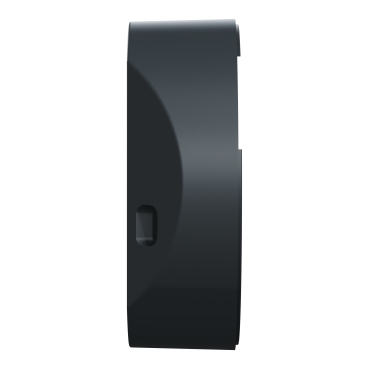

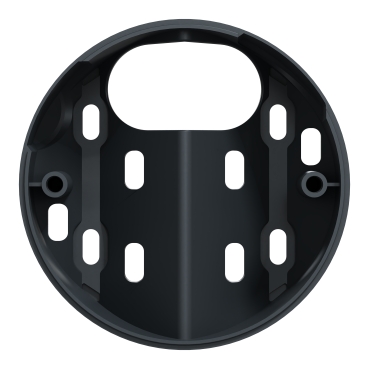

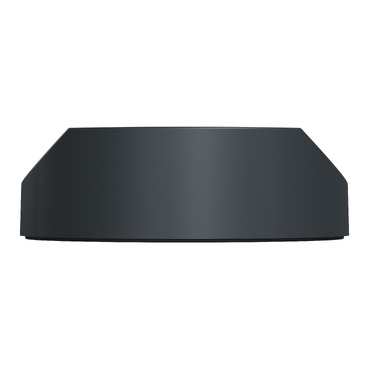

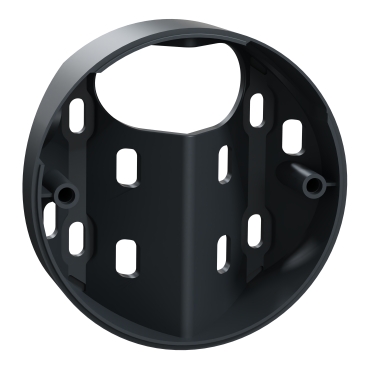

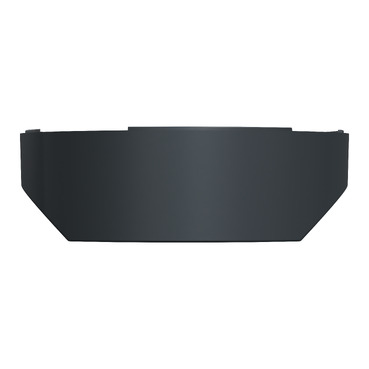

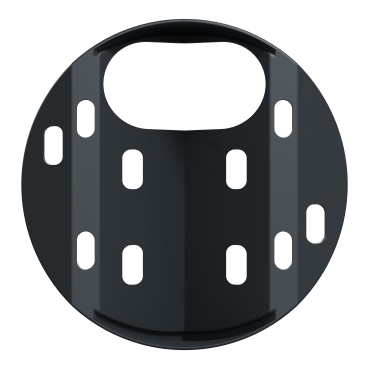

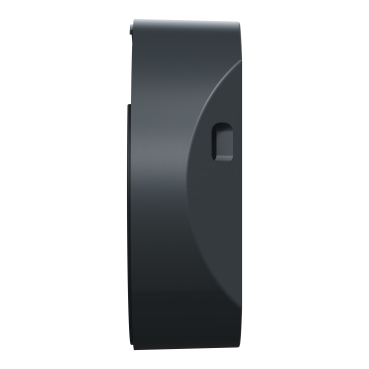

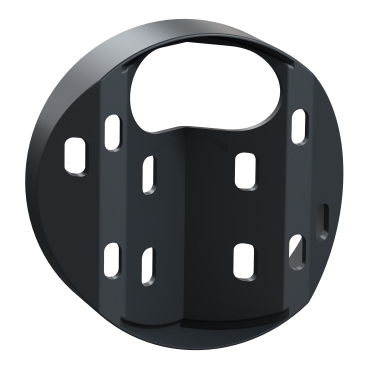

ARGUS Movement detectors Mounting bracket for motion sensor outdoor, inner and outer corner, anthracite

Item Number: CCT566114

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606486348116	-

Specifications

Design

Range of product	ARGUS movement detector
Range	ARGUS
Product or component type	mounting bracket
Colour tint	anthracite
Market segment	residential commercial

Physical

Device mounting	surface
Mounting support	wall
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2303011EN
Eu rohs directive	Compliant

Others

Legacy weee scope	In
	At least in Europe
Average percentage of recycled plastic content	0 %
Package 2 bare product quantity	96
Package 1 bare product quantity	1
Weee label	No
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Warranty duration(in months) bmecat	18
Main colour tint	anthracite
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3.550 cm
Package 1 width	7.780 cm
Package 1 length	7.780 cm
Package 1 weight	41.000 g
Unit type of package 2	S03
Number of units in package 2	96
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	4.670 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	6 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.2104756573737816
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.01178220322510093
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.013467987844029198
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	4.448199999999999
Carbon footprint of the use phase [b2, b3, b4, b6]	4 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.08863012287630753
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	5.7725559713192185
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	ENVEOLI2303011_V1
Take-back	No
Warranty (in months)	18
