ARGUS Occupancy Sensor PIR Single-Load 360 degrees | White Electric

Item Number: SAE_UE_MS_CSAWE

This ARGUS presence sensor is a 1 channel, 3-wire motion sensor with a maximum load handling of 10A, 100µF. The detection range of this motion sensor is 7m diameter with an angle of 360° (ceiling installation at 2.5m height). Sensitivity, light threshold (10 - 2000 Lux) and delay time (5s - 30min/ pulse-1s) can be adjusted.

Where To Buy

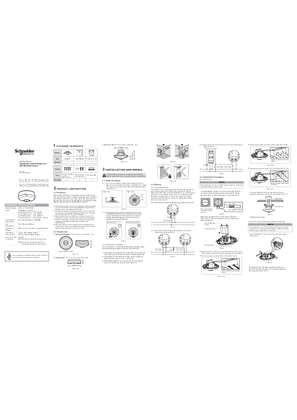

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

ARGUS

Range

ARGUS

Product or component type

occupancy sensor

Warranty

18 months

Physical

Load type

  • halogen lamp <= 1000 VA
  • energy saving lamp <= 80 VA
  • incandescent lamp <= 2000 W
  • low voltage halogen lamp <= 1000 VA
  • fluorescent lamp 100 µF <= 900 VA

Rated voltage

230 V +/- 10 % AC 50/60 Hz

Detection angle

360°

Presence detection area

PIR: 360°, 7 x 7 m

Device mounting

  • flush
  • surface

Mounting support

ceiling

Mounting height

2...3 m

Depth

66 mm

Ip degree of protection

  • IP40 flush mounting
  • IP44 surface mounting

Ambient air temperature for operation

  • 0...45 °C indoor
  • -20...45 °C outdoor

Standards

  • EN 60669-1
  • EN 60669-2-1

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP110502EN

Circularity profile

ENVEOLI110502EN

Others

Package 1 bare product quantity

1

Diameter

111 mm

Electrical shock protection class

class II

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.5 cm

Package 1 width

12 cm

Package 1 length

12 cm

Package 1 weight

281.82 g

Unit type of package 2

CAR

Number of units in package 2

44

Package 2 height

41 cm

Package 2 width

32.5 cm

Package 2 length

52 cm

Package 2 weight

12000 g

Unit type of package 3

P12

Number of units in package 3

440

Package 3 height

95 cm

Package 3 width

80 cm

Package 3 length

120 cm

Package 3 weight

140000 g

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
Show all specifications

Frequently Asked Questions

What is the replacement for the PDL100CF360?

Hide Show

PDL100CF360 is now an obsolete item - alternate item is SAE_UE_MS_CSAWE
