C-Bus Relay DIN Rail Mounted Voltage Free, 240V, AC, 4 Channel, 10A, With C-Bus Power Supply

C-Bus Relay DIN Rail Mounted Voltage Free, 240V, AC, 4 Channel, 10A, With C-Bus Power Supply

Item Number: L5504RVF

Datasheet

Product Dimensions

Width icon

Width144 mm

Height icon

Height85 mm

Depth icon

Depth65 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

C-Bus

Product brand

Clipsal

Range

C-Bus

Sustainable offer status

Green Premium product

Physical

Connector type

screw terminals

Width

144 mm

Height

85 mm

Depth

65 mm

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP111268EN

Circularity profile

ENVEOLI111254EN

Material

Device composition

socket-outlet

Others

Package 1 bare product quantity

1

[us] rated supply voltage

15...36 V DC

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.802 cm

Package 1 width

11.084 cm

Package 1 length

15.649 cm

Package 1 weight

450.0 g

Unit type of package 2

CAR

Number of units in package 2

8

Package 2 height

22.8 cm

Package 2 width

24.6 cm

Package 2 length

34.1 cm

Package 2 weight

4.071 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • Product Brochures

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

  • End of Life Manual

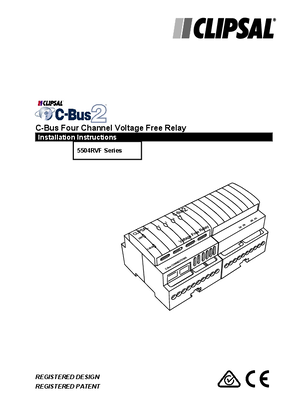

  • Installation Instruction
