C-Bus, Wiser Automation Controller, RS232/485, Ethernet, DIN Mount, 24V DC

Home ProductsSmart HomeC-BusWiser Automation Controller

C-Bus, Wiser Automation Controller, RS232/485, Ethernet, DIN Mount, 24V DC

Item Number: 5500SHAC

Datasheet

Product Dimensions

Width icon

Width93 mm

Height icon

Height108 mm

Depth icon

Depth63 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Wiser

Product or component type

logic controller

Market segment

residential

Sustainable offer status

Green Premium product

Physical

Communication port protocol

C-Bus RJ45 (2000 devices)|IP (Internet Protocol) RJ45|serial link terminal block RS232|BACnet IP RJ45 (50 devices)|Modbus RTU terminal block RS485 (6 devices)|Modbus TCP RJ45

Power consumption in w

2 W

Local signalling

LED (green/red) for power|LED (green/red) for status indication|LED (green) for relay output (REL)|LED (multi-colour) for input status|LED (multi-colour) for RS232 link activity|LED (multi-colour) for serial link communication (RS485, RX, TX)|LED (green) for C-Bus status|LED (green/yellow) for Ethernet link

Control type

smartphone or tablet|remote control|RESET push-button|local control|by touch panel|by web browser|RESET push-button cold restart

Function available

visualisation|updateable software

Connections - terminals

power supply: screw terminal 3 cable(s) 1.5-1.5 mm²|LED lamp: screw terminal 2 cable(s) 1.5-1.5 mm²|relay digital output: screw terminal 3 cable(s) 1.5-1.5 mm²|digital input: screw terminal 2 cable(s) 1.5-1.5 mm²|RS232 link: screw terminal 3 cable(s) 1.5-1.5 mm²|RS485 link: screw terminal 5 cable(s) 1.5-1.5 mm²

Mounting support

DIN rail

Height

108 mm

Width

93 mm

Depth

63 mm

Ambient air temperature for operation

-5...45 °C

Relative humidity

10...90 %

Ip degree of protection

IP20

Standards

EN 55022 class A|AS/NZS CISPR 22

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

X

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1701009EN

Circularity profile

ENVEOLI1701009EN

Others

Package 1 bare product quantity

1

Product name

C-Bus Automation Controller

[us] rated supply voltage

24 V DC

Port ethernet

10BASE-T/100BASE-TX

Number of port

1 USB 2.0 type A|1 USB 1.1 type B|1 RS232 (serial link)|1 RS485 (Modbus)|2 RJ45 (C-Bus)|1 RJ45 (Ethernet)

Web services

web server

Number of inputs

1 dry contact

Input impedance

2.2 kOhm closed|6.9 kOhm opened

Number of outputs

1 relay changeover

Output voltage

24 V DC 1 A for relay|48 V AC 1 A for relay

Total number of 18 mm modules

6

Operating altitude

<= 2000 m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

10.0 cm

Package 1 width

11.5 cm

Package 1 length

16.0 cm

Package 1 weight

340.0 g

Unit type of package 2

PAL

Number of units in package 2

128

Package 2 height

97.4 cm

Package 2 width

80.0 cm

Package 2 length

60.0 cm

Package 2 weight

43.52 kg

Unit type of package 3

CAR

Number of units in package 3

8

Package 3 height

20.6 cm

Package 3 width

22.8 cm

Package 3 length

33.0 cm

Package 3 weight

2.72 kg
Show all specifications

Documents & downloads

hide show
Filter items
  • All

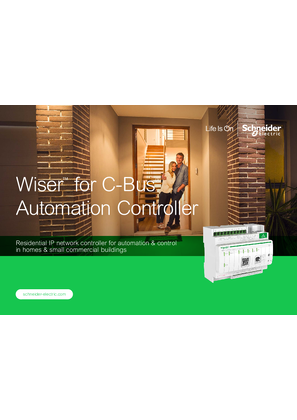

  • Product Brochures

  • CAD Files and Packs

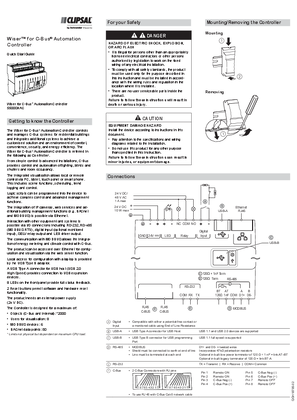

  • Installation Instruction

  • End of Life Manual

  • Environmental Disclosure

  • Operating Manuals

  • System User Guide

  • Specification Guide

  • Application Notes

  • Declaration of Conformity

  • Firmware

  • Software - Release

Frequently Asked Questions

hide show

How to set up vertical slider on a 5500SHAC/NAC, 5500NAC2/AC2?

Under Visualization Parameter

tick the Vertical slider and invert the vertical slider option to flip the horizontal slider to a vertical slider icon

horizontal slider to vertical slider



tick inversion optionTick inver vertical slider




Where to download the latest C-Bus Commissioning Software from?

The latest C-Bus Commissioning Software including SpaceLogic C-Bus Toolkit, C-Bus PICED and SpaceLogic C-Bus Commissioning Software (used to commission the C-Bus DALI 2 Gateway) can be found in the Schneider EcoStruxure Exchange[1]

[1] - https://ecoxpert.se.com/en/spacelogic-c-bus/software-and-firmware/software#tab/documents

How do I access the Configurator and the Visualization webpage?

When accessing the embedded web server of the C-Bus Automation Controller (5500NAC/5500SHAC), the start page is displayed. From the start page, access the configurator and the following user modules:
  • PC/Tablet Visualization
  • Smartphone Visualization
  • Scheduler
  • Trends.
As administrator, configure the controller via the configurator and control user access to these four modules.

If the controller is set to directly access the Visualization bypass the start page, then the Configurator can be accessed using this URL.
http://192.168.254.10/scada-main


Are the backup files tar,gz interchangeable between the 5500NAC and the 5500SHAC?

A backup made on the NAC can be transferred to a SHAC and vise versa.

Considerations will need to be made in the circumstances where a SHAC limitation might be exceeded by a NAC project though (BACnet object limits, Modbus device limits, user account limits etc).

There are also options within the NAC/SHAC as well if the need to import or export sections of a project such as visualisations and scripts.



How to set a timeout page on 5500NAC/SHAC Using javascript?

In NAC/SHAC > Scripting > edit custom JavaScripting

Copy and paste the code below

Modify adjust the timer value to your need (i.e 20000 = 20 sec)

Set the Current plantID to the page that you want it to time out too. For example high light in yellow showed on image below.

$(function() {



 // Back to Start after x seconds (in miliseconds)

 var SE_Timeout = 20000; // adjust this timer value if needed (20 seconds in miliseconds)

 var SE_Startpage = currentPlanId; // First page that is loaded

 var eventlist = 'vclick vmousedown vmouseout touchend';



 // Timer function no usage detected

 function No_Usage_Detected(callback, timeout, _this) {

  var timer;

  return function(e) {

    var _that = this;

    if (timer)

      clearTimeout(timer);

    timer = setTimeout(function() {

      callback.call(_this || _that, e);

    }, timeout);

  }

 }







 // Back to start function when timer elapsed

  var SE_Goto_Startpage = No_Usage_Detected(function(e) {

  if ( currentPlanId != SE_Startpage ) {

  showPlan(SE_Startpage);

  }

 }, SE_Timeout);



 // Add event listener to document to detect user input

 $(document)

 .on(eventlist, function() {

  SE_Goto_Startpage();

 });



 // Add event listener to all iframes to detect user input inside iframes

 $('iframe').load(function() {

  var iframe = $('iframe').contents().find('html');

  iframe.on(eventlist, function(event) {

   SE_Goto_Startpage();

  });

 });







});




How many Administrator User Accounts can the C-Bus Automation Controller have?

The C-Bus Network Automation Controller (5500NAC) and the Wiser for C-Bus Automation Controller (5500SHAC), both Controllers can only have one administrator access.

Username: admin
Password: admin (by default, it can be changed)

Change the default password on the System page.
Path: Configurator → Utility tab → System button → System tab → Admin Access
