Iconic Double Switched Scoket + USB Fast Charger Type C, 25W

Home ProductsSwitches and SocketsPDL IconicDouble Switched Scoket + USB Fast Charger

Iconic Double Switched Scoket + USB Fast Charger Type C, 25W | Vivid White

Item Number: PDL395USBC-VW

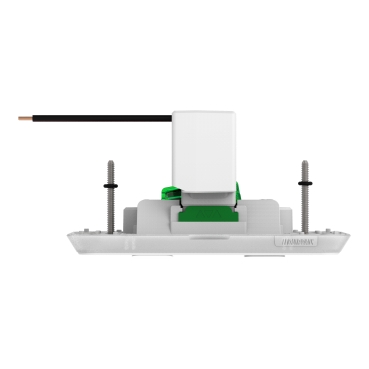

This PDL Iconic twin socket comes with a Type C USB fast charger. The color of the Iconic skin is Vivid White. The operating voltage is 220 to 240VAC at 50Hz and the rated current is 10A. The USB port output is 25W. The product has thermal fuse protection. The dimensions are (W) 78mm x (H) 120mm x (D) 55mm. The product requires installation by a qualified electrician.

Datasheet

Product Dimensions

Width icon

Width78 mm

Height icon

Height120 mm

Depth icon

Depth55 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Iconic

Range

PDL Iconic

Product or component type

switched socket with USB charger

Product brand

PDL

Colour tint

vivid white (VW)

Surface finish

matt

Sustainable offer status

Green Premium product

Physical

Device presentation

complete product

Outlet poles configuration

2P + E with shutter

Outlet standard

Australian

Device mounting

flush

Mounting position

horizontal

Number of power socket outlets

2

Number of rocker

2

Range compatibility

Iconic switched socket with USB charger

Outlet standard description

with earthing contact

Ground lug position

straight 180° position

Pin number

3

Fixing mode

by screw

Installation direction

horizontal

Type of packing

polybag

Quantity per set

1 set of 10

Sale per indivisible quantity

1

Rated current

10 A at 220...240 V AC 50 Hz

Connections - terminals

3 screw terminals

Screwdriver shape

square drive no 1 (SQ1)

Clamping connection capacity

1 x 2.5...4 x 2.5 mm² for stranded cable(s)

Wire stripping length

16 mm

Height

120 mm

Width

78 mm

Depth

55 mm

Ambient air temperature for storage

0...60 °C

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Standards

AS/NZS 3112

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP2403023EN

Circularity profile

N/A

Material

Material

PC (polycarbonate): cover frame|ABS (acrylonitrile butadiene-styrene): cover frame|PC (polycarbonate): fixing frame

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

5

Switch application

control

Outlet standard deviation

Australian/New Zealand

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.0 cm

Package 1 width

2.7 cm

Package 1 length

4.7 cm

Package 1 weight

105.0 g

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

21.8 cm

Package 2 width

10.2 cm

Package 2 length

14.65 cm

Package 2 weight

552 g
