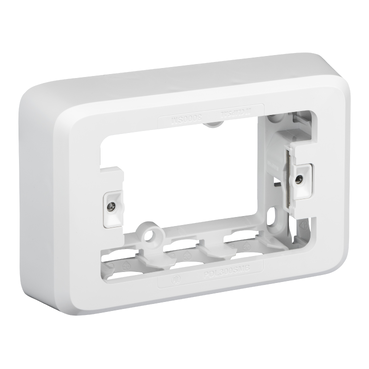

Standard Series Mounting Block Shallow 32mm 1-Gang, White

Standard Series Mounting Block Shallow 32mm 1-Gang, White | VW

Item Number: PDL300SMB-VW

Datasheet

Product Dimensions

Width icon

Width140 mm

Height icon

Height91 mm

Depth icon

Depthexternal : 32 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

PDL General Accessories|Iconic

Product or component type

mounting block

Colour tint

white

Surface finish

glossy

Sustainable offer status

Green Premium product

Physical

Quantity per set

set of 10

Type of packing

box

Installation direction

horizontal/vertical

Device mounting

surface

Height

91 mm

Width

140 mm

Depth

external : 32 mm

Fixing center

84 mm

Cable entry

12 x 20 mm knock-outs Ø 20 mm|12 x 25 mm knock-outs Ø 25 mm cable entry|12 knock-out cable entries

Ambient air temperature for operation

-10...40 °C

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP110719EN

Circularity profile

N/A

Material

Material

HIPS (high impact polystyrene)

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.2 cm

Package 1 width

9.1 cm

Package 1 length

14.0 cm

Package 1 weight

78 g
Show all specifications
