Acti9, Digital Time Switch, IHP+ 1C, 18 mm, with weekly program

Acti9, Digital Time Switch, IHP+ 1C, 18 mm, with weekly program

Item Number: CCT15838

Datasheet

Product Dimensions

Width icon

Width18 mm

Height icon

Height90 mm

Depth icon

Depth66 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Acti9

Range

Acti9

Product or component type

programmable digital time switch

Device application

building

Colour tint

white (RAL 9003)

Physical

Number of channels

1

Provided equipment

memory key

Load type

  • incandescent lamp: <= 2000 W
  • halogen lamp: <= 2000 W
  • parallel-corrected fluorescent tube with conventional ballast: <= 1300 W (140 µF)
  • fluocompact lamp with electronic ballast: <= 300 W
  • dual corrected fluorescent tube with conventional ballast: <= 2000 W
  • non-corrected fluorescent tube with conventional ballast: <= 2000 W
  • dual mounted fluorescent tube with conventional ballast: <= 2000 W
  • 2...8 W LED lamp: <= 180 W
  • < 2 W LED lamp: <= 55 W

[ue] rated operational voltage

230 V AC - 15...10 % at 50/60 Hz

Minimum interval duration

1 s

Function available

  • operating hours counter
  • automatic winter/summer time changeover
  • external input for override
  • pulse programming

Backup time

10 years time and program saving

Type of setting

  • absence for holidays function
  • PIN code
  • random function

Connections - terminals

2 x 0.5-2.5 mm² screwless terminals

Mounting support

DIN rail

Width

18 mm

Height

90 mm

Depth

66 mm

Net weight

0.09 kg

Ambient air temperature for operation

-25...55 °C

Ip degree of protection

IP20

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

X

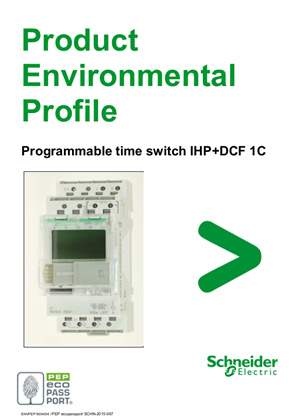

Environmental disclosure

ENVPEP1504004

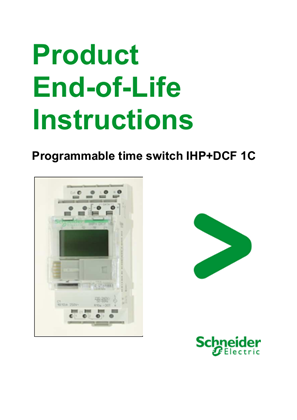

Circularity profile

ENVEOLI1504004

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

86

Product name

Acti9 IHP

Device short name

IHP+

Battery type

lithium

User language

  • Italian
  • Portuguese
  • French
  • Spanish
  • Dutch
  • English

Maximum switching current

  • 16 A - 250 V AC pf = 1
  • 4 A - 250 V AC pf = 0.6

Number of inputs

1 input(s) impulse and maintained

Accuracy

+/- 0.25 s/day 25 °C

Cycle duration

24 hours + 7 days

Maximum number of switchings

84

Display type

LCD

Battery life

10 year(s)

9 mm pitches

2

Function

pulse programming, random function, external input for override

Absence for holidays

yes

Time changeover

automatic

Updated by

none

Compatibility code

IHP

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.300 cm

Package 1 width

8.300 cm

Package 1 length

10.600 cm

Package 1 weight

127.000 g

Unit type of package 2

S03

Number of units in package 2

86

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

11.721 kg

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Bvb url

https://byggvarubedomningen.se/

Scip number

5c23d91a-4c63-483e-b70a-45310671b035

Bvb

Accepted

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

No

Removable battery

No
Show all specifications

Frequently Asked Questions

hide show

What is the battery life on the Timer CCT15838 ?

Battery life of CCT15838 shows as 10 years on data sheet as attached.
