Powerguard Series Portable RCD Protected Cordset 2m, 10A, 230, 240VAC
Item Number: PDL956
Datasheet
Close
Specifications
Design
Range of product
PDL Sensors
Product or component type
residual current device
Colour tint
orange
Surface finish
gloss
Device application
residual current device
Physical
Control type
push-button
Rated current
10 A
[ue] rated operational voltage
230/240 V
Number of poles
2
Ip degree of protection
IP56
Ambient air temperature for operation
-10...40 °C
Quantity per set
set of 1
Type of packing
carton
Reach free of svhc
Yes
Eu rohs directive
Compliant
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental disclosure
ENVPEP060307EN
Circularity profile
N/A
Material
Material
PC (polycarbonate)
Others
Package 1 bare product quantity
1
Network frequency
50 Hz
Nominal power
2.4 kW
Network number of phases
1 phase
Cable cross section
0.75...1.5 mm²
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
9 cm
Package 1 width
17 cm
Package 1 length
35 cm
Package 1 weight
760 g
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-
Environmental Disclosure
-

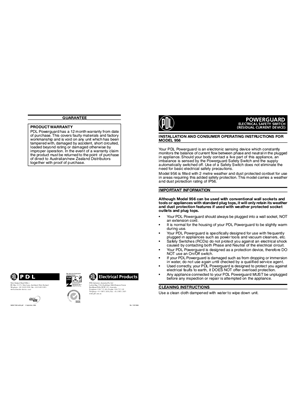

Operating Manuals
