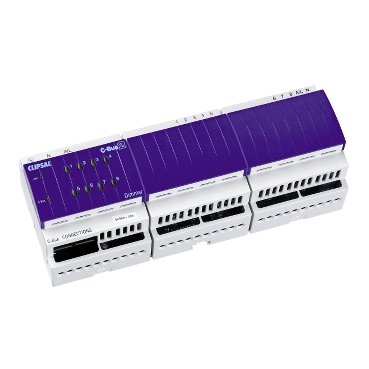

C-Bus Dimmer DIN Rail Mounted Leading Edge, 240V AC, 8 Channel, 1A, With C-Bus Power Supply

C-Bus Dimmer DIN Rail Mounted Leading Edge, 240V AC, 8 Channel, 1A, With C-Bus Power Supply

Item Number: L5508D1A

Datasheet

Product Dimensions

Width icon

Width215 mm

Height icon

Height85 mm

Depth icon

Depth65 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

C-Bus

Product brand

Clipsal

Product or component type

dimmer

Device application

control

Physical

Device presentation

basic element

Load type

  • incandescent
  • low voltage lamp with electronic transformer

Dimmer type

leading edge

Communication network type

C-Bus

Local signalling

LED

Number of channels

8

Connector type

  • RJ45 for C-Bus
  • RJ45 for remote override

Mounting support

DIN rail

Clamping connection capacity

  • 1 x 2.5 mm²
  • 2 x 1.5 mm²

Width

215 mm

Height

85 mm

Depth

65 mm

Net weight

675 g

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP111268EN

Circularity profile

ENVEOLI111254EN

Others

Commercial status history

  • SESA301466
  • Thu Dec 14 22:16:00 EST 2023
  • From Import Local
  • From 18 to 19

Package 1 bare product quantity

1

Load current

1 A per channel

Power supply output current

200 mA

Standby consumption

10 W

Network frequency

  • 47...53 Hz
  • 57...63 Hz

Maximum number of supported devices

10 per network

Input impedance

50 kOhm at 1-1 kHz

Isolation voltage

3.75 kV from C-Bus to mains

Starting time

5 s

Time delay range

0...33.5 min

Software function

  • select network clock
  • select network burden
  • select time delay range

Number of modules

12

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.6 cm

Package 1 width

11.0 cm

Package 1 length

22.8 cm

Package 1 weight

786.0 g

Packaging without single use plastic

No

Packaging made with recycled cardboard

Yes

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

240.0126562025

Global warming ; total life cycle​

240 kg CO2 eq.

Minimum percentage of recycled plastic content

0
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • Product Brochures

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

  • End of Life Manual

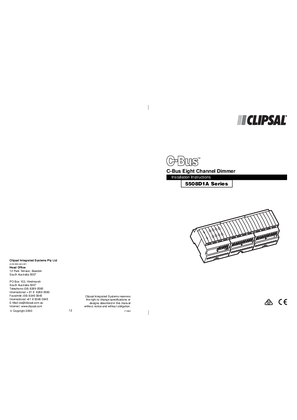

  • Installation Instruction

  • Quick Start Guide

  • Operating Manuals

  • Specification Guide

  • Application Notes

  • Certificates (MSDS)

  • Declaration of Conformity

  • Software - Release

Frequently Asked Questions

How to enable a C-Bus Network Burden via Learn Mode?

Hide Show

This FAQ explains how to enable the software Network Burden via Learn Mode.



We can enable the software burden via the Toolkit software or by using a hardware burden, but if Toolkit isn’t scanning correctly and you don’t have a hardware burden, use the following process:



To enable the Software Network Burden via Learn Mode:
1. Find any Learn Mode output unit.
2. Press and hold down any of the Quick Toggle buttons, on any of the output
unit for 10 Seconds. The Unit and C-Bus LED begin to flash alternately.
3. Quickly double press any of the Quick Toggle buttons on any output units.
If successful, the Unit LED will flash rapidly and all the Quick Toggle
Buttons will turn on.
4. Double press the same Quick Toggle button again, and you will see that
the C-Bus LED change state. This particular unit is now in Super Learn
Mode. If the C-Bus LED is on the Software Burden is enabled.
5. Each time the same Quick Toggle button is double pressed the C-Bus LED
will toggle between on and off. This corresponds to the internal Network
Burden being turned on and off.
6. WARNING: When you exit learn mode, all of the Quick toggle buttons that
are on, will have the corresponding Group Addresses deleted. If you wish
to retain any previous programming on that particular unit, turn off each
Quick Toggle button before performing the next step with a single press.
7. To exit Super Learn Mode press and hold down any of the Quick Toggle
buttons for 2 seconds.

Note: The Unit Address of the unit that you put into Super Learn Mode will now have
the Unit Address 001 (01h).

The software Network Burden will now be successfully enabled on the output unit
that was put into Super Learn Mode.

Video Process:

Where to download the SpaceLogic C-Bus Commission V2.2.0?

Hide Show
Where to download the SpaceLogic C-Bus Commission V2.2.0?
Release Date: 02/04/2024
Version: V2.2.0
Reference: C-Bus-Commission_V2.2.0
C-Gate: 3.3.0 (build 1825)
Operating systems: Windows 11 Professional (64-bit), Windows 10 Professional (64-bit), Windows 10 Enterprise (64-bit), Windows 10.

What’s New
• Dimmer conversion will add default channel name
When converting older LE dimmers DIMDN4 or DIMDN8 (L5504D2A or L5508D1A) to the new digital dimmers DIMDD4 (5504D2D) and DIMDD8 (5508D1D), the software will now automatically insert a default channel name per channel.

• Network Summary for a C-Bus Network
The C-Bus Network node will show the summary of network information and status including the C-Bus Current supplied and consumed values plus the network impedance value. This data is only taking the project devices into consideration (not the live network devices).

• View the in-built C-Bus power supply status of C-Bus Digital Dimmers on the live network
An icon has been added to the Status column in the Network Devices section of the C-Bus Devices workspace indicating whether the in-built C-Bus Power Supply for the new C-Bus Digital Dimmer (DIMDD4 and DIMDD8) is enabled or disabled.

Fixes
• Project conversion issues. The software will now show correctly when a project has truly failed to convert. Issue with projects in “Waiting” resolved.
• Multiple confirmation dialogues when delete a device in project.
• When transferring to a C-Bus Automation Controller and C-Bus Application Controller, updating a Tag Map name will create an Object if one does not exist, this can result in additional objects created in controller that were not defined in the Object List. Note, this release of SpaceLogic C-Bus Commission software is only compatible with the C-Bus Automation Controller and C-Bus Application Controller firmware version 1.16.0 (when using the Controller Sync function).
• Warn Before Off Enable Group in live network Digital Dimmer is blank and not auto created during a network scan.
• Network burden property of Digital Dimmers did not update the C-Bus summary data (not included in network calculator).

Known Issues
• A slight delay may be seen when switching views back and forth between the Measurement and Error applications where a large amount of data (150 items or more) exists.
• Clicking on the Main Menu repeatedly will result in a decrease in software performance. C-BUS COMMISSION RELEASE NOTES 2
• Switching projects 10 or more times will result in a decrease in software performance.
• Measurement application values presented from the live network may not appear truncated and rounded to reasonable decimal places.

Link to download the SpaceLogic C-Bus Commission V2.2.0
https://www.se.com/nz/en/download/document/C-Bus-Commission_V2.2.0/
or
https://www.se.com/au/en/product-range/2216-spacelogic-cbus-home-automation-system/?parent-subcategory-id=88010&filter=business-5-residential-and-small-business#software-and-firmware


What type of LED's can be used on C-Bus Dimmers?

Hide Show
Firstly you will need to confirm whether your C-Bus system contains C-Bus Leading Edge Dimmers or C-Bus Universal Dimmers, You may need to consult with your EcoXpert in Light and Room Control which one(s) you have if unsure.

The general recommendations for LED compatibility with C-Bus Dimmers is as follows
1) Ensure your LED's have a dedicated LED Driver (electronic transformer) that supports your C-Bus Dimmer type
2) Bench test that the LED Driver is of good quality and works as expected at your site
3) C-Bus Dimmer channels require >25W of load if less is connected to a specific channel that channel will require the addition of a 31LCDA (Load Corrective Device)
4) If the dimming range of the LED fittings is specified by the manufacturer - the installer can programmer the Min/Max settings of the C-Bus Dimming channel to match the LED fittings dimming range.

Note:
C-Bus Leading Edge Dimmers will require LED's which have electronic transformers (LED Driver) which support Leading Edge AC phase control dimming (as noted in the compatible loads section of the installation manual)

C-Bus Universal Dimmers will require LED's which have electronic transformers (LED Driver) which supports Trailing Edge AC phase control dimming (as noted in the compatible loads section of the installation manual).
Although Universal Dimmers can support leading OR trailing edge AC phase control dimming it needs to be exclusively one or the other (NOT BOTH). As such LED Drivers which note LE/TE LED Driver are NOT suitable for the Universal Dimmer.
IMPORTANT: Clipsal by Schneider Electric & Schneider Electric DO NOT make LED's which are compatible with C-Bus NOR can we recommend specific LED Drivers for your C-Bus Dimmer type as LED Dimming and Driver technology is continually changing. The above is a guideline to assist you choose a compatible LED with dedicated LED Driver that supports your dimmer in question. As noted above please have your EcoXpert in Light and Room Control bench test LED Fittings and LED Driver for suitability on your C-Bus Network.
