Iconic Essence Cover Plate Switch 6-Gang

Home ProductsSwitches and SocketsPDL IconicEssence Cover Plate Switch

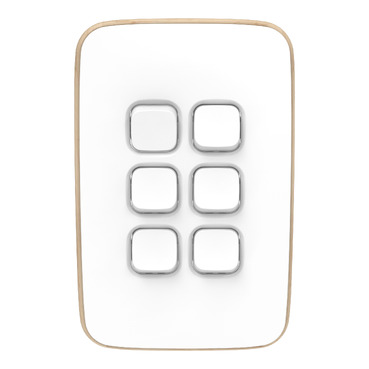

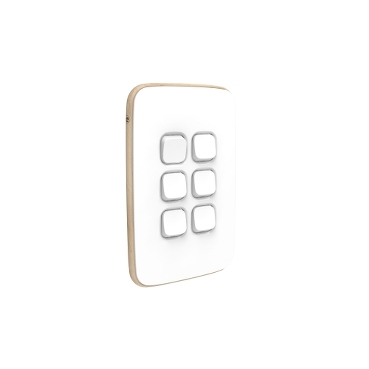

Iconic Essence Cover Plate Switch 6-Gang | Arctic White

Item Number: PDLE386C-AW

Datasheet

Product Dimensions

Width icon

Width85.0 mm

Height icon

Height131.0 mm

Depth icon

Depth9.0 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PDL Iconic

Aesthetic name

Iconic Essence

Product or component type

cover frame

Colour tint

cover frame: arctic white (AW)|edge: birch

Product destination

switch

Surface finish

matt

Physical

Type of packing

polybag

Quantity per set

set of 10

Range compatibility

PDL Iconic switch

Device mounting

flush

Number of rocker

6

Installation direction

vertical

Fixing mode

clip-on

Height

131.0 mm

Width

85.0 mm

Depth

9.0 mm

Net weight

0.03 kg

Ambient air temperature for storage

0...45 °C

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Reach free of svhc

Yes

Eu rohs directive

Compliant

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP1607003EN

Circularity profile

N/A

Material

Material

birch timber: cover frame

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1 cm

Package 1 width

8.46 cm

Package 1 length

12.98 cm

Package 1 weight

44 g

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

0.475400513
