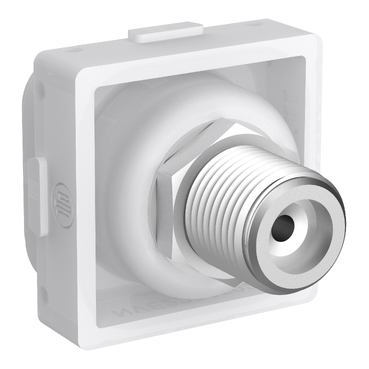

Iconic Module TV Antenna Socket F-Type Rear, 300 Series

Iconic Module TV Antenna Socket F-Type Rear, 300 Series | Translucent

Item Number: PDL328MF-TN

Functional and reliable, the F-type rear PDL Iconic TV PAL Antenna socket outlet is the perfect counterpart to the 40PFM-TN F-type front socket outlet.

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PDL Iconic

Product or component type

TV socket

Surface finish

glossy

Surface treatment

untreated

Physical

Device presentation

mechanism

Device mounting

flush

Fixing mode

clip-in

Tv socket type

TV

Tv connector

PAL to F-type

Type of cable

coaxial

Cable outer diameter

9 mm

Type of packing

polybag

Quantity per set

1

Sale per indivisible quantity

1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1604002

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Outlet standard deviation

Australian/New Zealand

Number of modules

1 module 23 x 23 x 25 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.5 cm

Package 1 width

2.3 cm

Package 1 length

0.7 cm

Package 1 weight

7.3 g

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

0.0395595122
