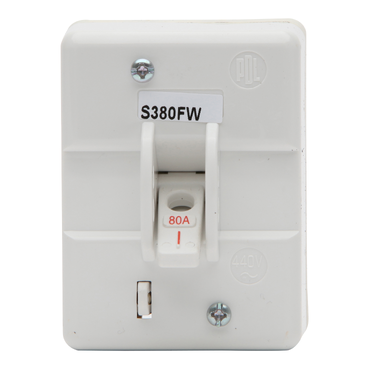

S Series Mains Switch 80A 3P Front Wired IP66, White

S Series Mains Switch 80A 3P Front Wired IP66, White

Item Number: PDLS380FW

Datasheet

Product Dimensions

Width icon

Width52.5 mm

Height icon

Height70 mm

Depth icon

Depth51 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

S Series

Product or component type

switch

Colour tint

white

Surface finish

gloss

Physical

Installation direction

vertical

Width

52.5 mm

Height

70 mm

Depth

51 mm

Rated current

80 A

[ue] rated operational voltage

440 V

Number of poles

3

Mounting mode

surface mounted

Ip degree of protection

IP66

Quantity per set

set of 1

Type of packing

carton

Eu rohs directive

Under investigation

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Network frequency

50 Hz

Motor m-rating as3133

M200

Cable cross section

25 mm²

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.5 cm

Package 1 width

6 cm

Package 1 length

7 cm

Package 1 weight

0.175 kg
