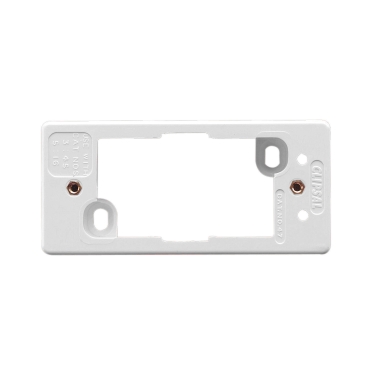

Standard Series, Mounting Block, 1 Gang, 103x49x25mm

Standard Series, Mounting Block, 1 Gang, 103x49x25mm White Electric

Item Number: 47-WE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Sustainable offer status

Green Premium product

Physical

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP110719EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.5 cm

Package 1 width

10.3 cm

Package 1 length

4.9 cm

Package 1 weight

36 g

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

8.8 cm

Package 2 width

10.4 cm

Package 2 length

12.6 cm

Package 2 weight

0.22 kg

Unit type of package 3

CAR

Number of units in package 3

50

Package 3 height

23.7 cm

Package 3 width

20.3 cm

Package 3 length

30 cm

Package 3 weight

2.2 kg
Show all specifications

Frequently Asked Questions

hide show

How To Update SCADAPack x70 Firmware & Bootloader

Firmware and Bootloader files come with the Remote Connect installation package.
Please download the latest RemoteConnect for the SCADAPack x70

Under My Network, right-click on SCADAPack x70 Controller Settings -DeviceDTM and select Additional Functions > Update Device Firmware or Bootloader.

remoteconnect

Select Update Device System firmware and click next

remote connect

Select the latest firmware version for the list and click next. The process starts and it takes a while to complete.

remote connect

The firmware file has a .biz file extension. By default, the firmware file is stored in one of the following directories:
64-bit systems: C:\Program Files (x86)\Schneider Electric\RemoteConnect\Firmware\SCADAPack XXX
32-bit systems: C:\Program Files\Schneider Electric\RemoteConnect\Firmware\SCADAPack XXX

To read about updating the firmware and bootloader instructions refer to the Maintenace section of User Manual
scadapack 474


What is the Modbus communications module for the NW breaker?

Issue:
Need communications module for Masterpact NW circuit breaker

Product Line:
Air Circuit Breakers

Resolution:
S47405 for fixed mount breakers, S48384 for drawout breakers.

What the DC current contact ratings for the CAD50, CAD32, CAD503, CAD323, CAD506, and CAD326 relay?

Issue:
Checking on the DC current contact ratings for the CAD50, CAD32, CAD503,  CAD323,  CAD506, and  CAD326 relay.

Product Line:
CAD Industrial Relays

Environment:
Relays and Timers

Resolution:
Inductive:
125V DC - 0.55 Amps make and break, 2.5 Amps cont.
250V DC - 0.27 Amps make and break, 2.5 amps cont.
600V DC - 0.10 Amps make and break, 2.5 Amps cont.

What would cause the InF fault on the ATS48 softstarter?

Issue:
InF fault causes on the ATS48 softstarter.

Product line:
Altistart 48, ATS48

Environment:
All models, all serial number

Cause:
InF displayed on the unit.

Resolution:
InF is an Internal fault. Try disconnecting the Control Voltage from CL1,CL2 terminals to see if the fault will reset.
This fault appears if the control board cannot determine the soft starts power rating from the information stored in the EEPROM memory chip on the power board.

Possible causes are:
- Loose ribbon cable connection on the Power board or the Control Board.  Try remove the control board, check the plugs and pins. Reseat the control board back in place.
   A few cases were observed in the field where the ribbon connector got loose due to vibration and caused this InF fault. The ribbon cable has to be reseated to fix the problem.

- The 24VDC is saturated.  Remove all connections to +24 terminal and then measure the voltage.

- SCR is shorted. Check Resistance across each SCR.

- If another ATS48 unit is available, try swapping control boards to confirm if the issue stays with the board or the soft start.

- Power rating not recognized.  Replace the Power board and/or Control board.

What is the replacement racking handle for drawout Masterpact NW and Masterpact NT breakers?

Product Line:
Circuit Breakers

Resolution:
S47944 Masterpact NW racking handle
S47098 Masterpact NT racking handle

Can Multi-9 C60 breakers be continuously loaded to 100% of their rating?

Issue:
Can Multi-9 C60 breakers be continuously loaded to 100% of their rating?

Product Line:
Multi 9 C60 MCB's

Resolution:
UL 489 Listed Multi 9 C60 circuit breakers may be loaded to no more than 80% if used with continuous loads.
UL 1077 recognized supplementary protectors may be operated at 100% of their rating.
IEC 60947-2 C60 breakers may be operated at 100% of their rating.
Show More
