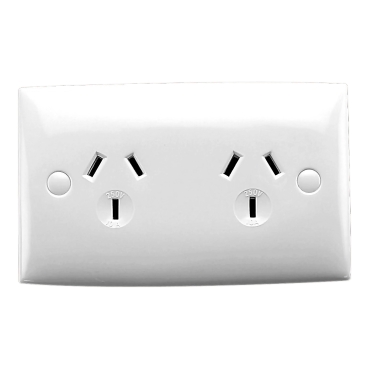

Standard Series Socket Outlet Double, Auto Switch, Horizontal, 10A, Single Pole

Standard Series Socket Outlet Double, Auto Switch, Horizontal, 10A, Single Pole | WE

Item Number: 20-WE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Standard Series

Product or component type

socket-outlet

Product brand

Clipsal

Physical

Quantity per set

set of 2

Marking

without marking

Local signalling

without light indicator

Fixing mode

by screws

[in] rated current

10 A

[ue] rated operational voltage

250 V AC

Depth

16 mm

Length

115 mm

Width

73 mm

Fixing center

84 mm

Number of poles

1

Standards

AS/NZS 3100|AS/NZS 3112|AS/NZS 3133|AS/NZS 3000:approval number S/1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Cover type

full cover plate

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1 cm

Package 1 width

7 cm

Package 1 length

11 cm

Package 1 weight

104 g

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

10.8 cm

Package 2 width

12.7 cm

Package 2 length

14.5 cm

Package 2 weight

582 g

Unit type of package 3

CAR

Number of units in package 3

50

Package 3 height

15.7 cm

Package 3 width

30.5 cm

Package 3 length

44.5 cm

Package 3 weight

5.8 kg
